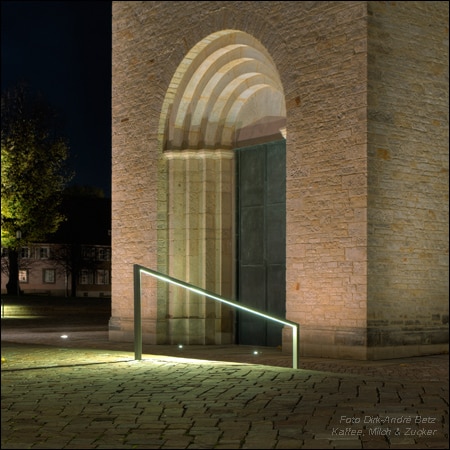

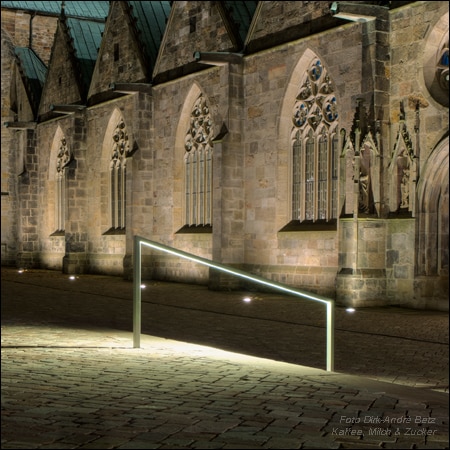

LED Handrail LAMANO U60x40

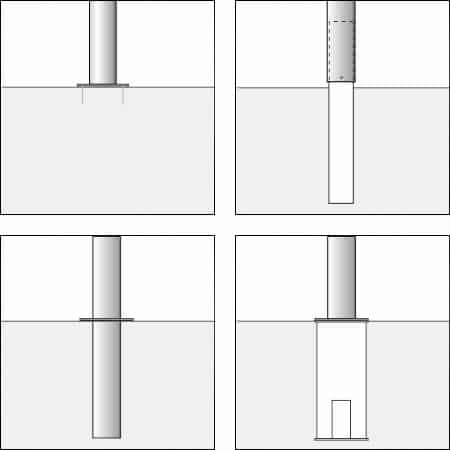

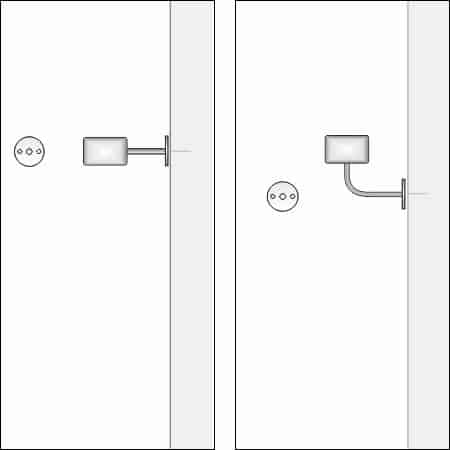

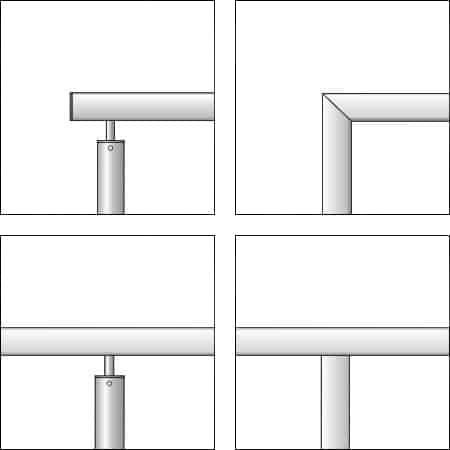

LED Handrail LAMANO U60x40 - technical drawing

LED Handrail LAMANO U60x40

Our high-quality LAMANO U42 | U48 | U60 LED stainless steel handrail offers safety and support when climbing stairs and is particularly helpful in environments with poor lighting or limited visibility. The integrated LED lighting ensures even illumination of the handrail and the surrounding area. Our LED handrails are energy-efficient and consume less power than conventional lighting systems. They offer high-quality light while simultaneously contributing to lower energy costs. The LED lighting is characterized by its long lifespan and requires minimal maintenance.

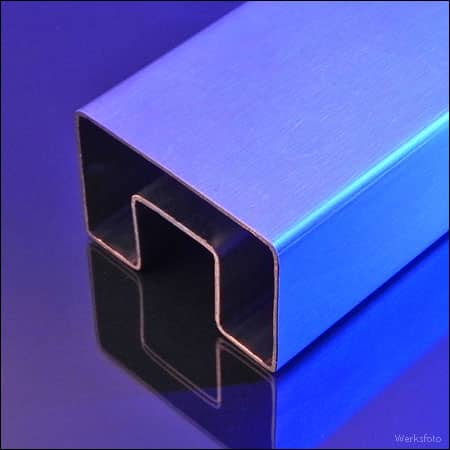

U-Profile

Profile U60 x 40
Stainless steel L304 (optionally L316)
Surface glass bead blasted, polished or powder-coated

Protection cover

white satin acrylic glass (85% light transmission)
transparent polycarbonate glass – optional
glossy black acrylic glass (18% light transmission) – optional

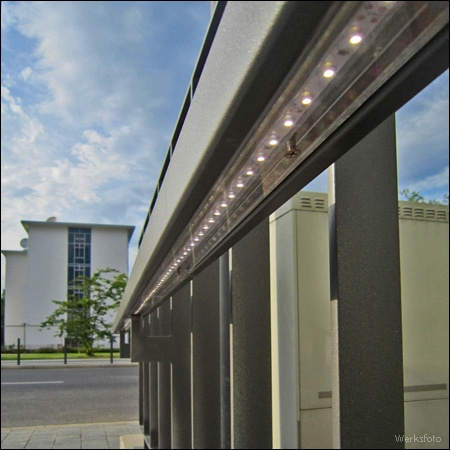

Illuminant

LED 4 W/meter to 14.4 W/meter (corresponds to approx. 452 – 1700 lumens/meter)
Other wattages available upon request
Light color white (2700 K – 5000 K) or RGB

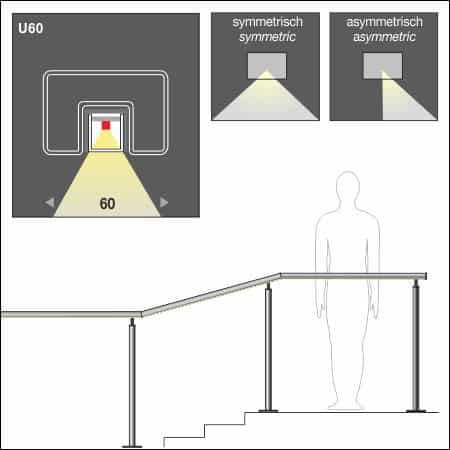

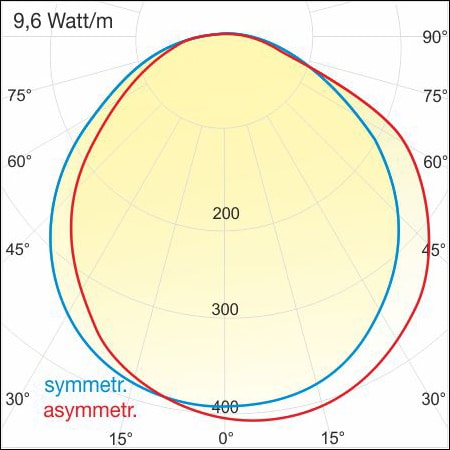

Light intensity and angle of radiation as required
CRI / RA 90

Technology

Protection class IP54 | IP 65 | IP67
Electrical safety class 1 | 2 | 3

We support you in the implementation of your handrail project, starting with advice, planning, through to production and on-side assembly.

We also offer the SMO professional kit for self-assembly for metal and electrical companies.

Call us, we will advise you!
Tel. +49 791/47077
