Hand Rail LAMANO U42 | U48 | U60

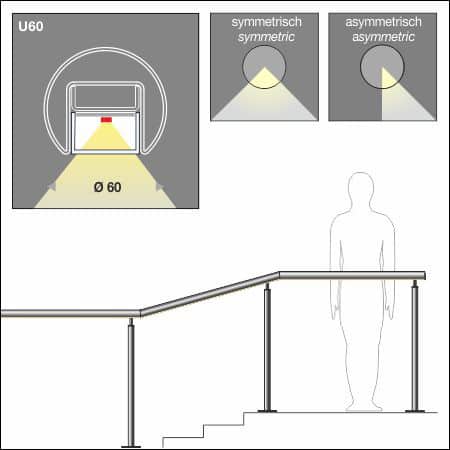

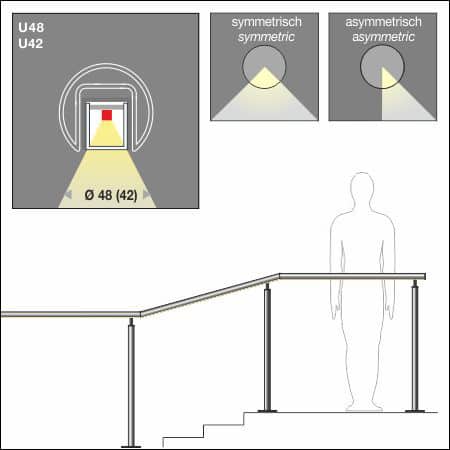

Handrail LAMANO U42 | U48 | U60 - icon + technical drawing

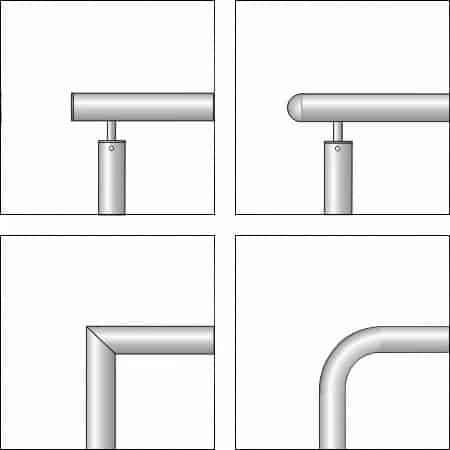

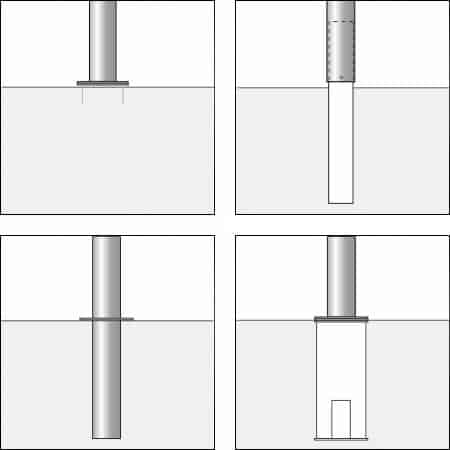

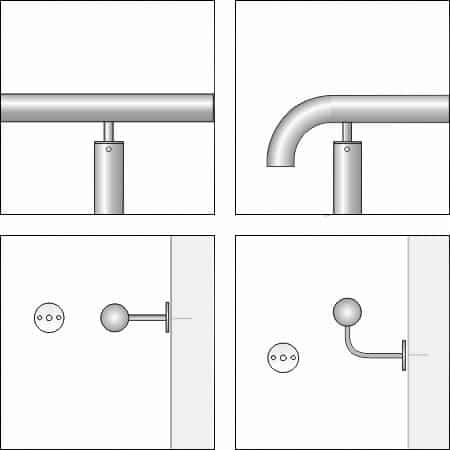

Handrail LAMANO U42 | U48 | U60 - technical drawing

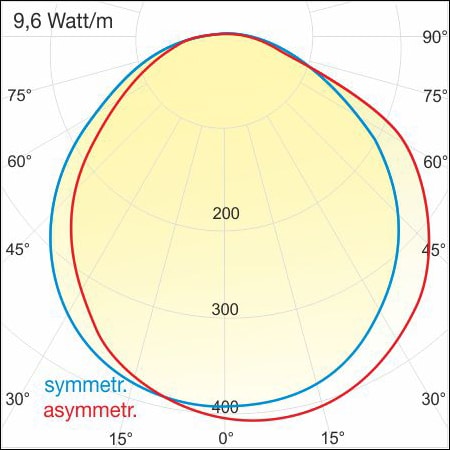

Handrail LAMANO U42 | U48 | U60 - light characteristic diagram

LED Handrail LAMANO U42 | U48 | U60

Our high-quality LAMANO U42 | U48 | U60 LED stainless steel handrail offers safety and support when climbing stairs and is particularly helpful in environments with poor lighting or limited visibility. The integrated LED lighting ensures even illumination of the handrail and the surrounding area. Our LED handrails are energy-efficient and consume less power than conventional lighting systems. They offer high-quality light while simultaneously contributing to lower energy costs. The LED lighting is characterized by its long lifespan and requires minimal maintenance.

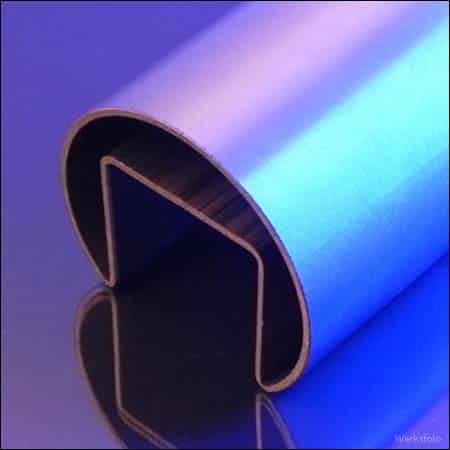

U-Profile

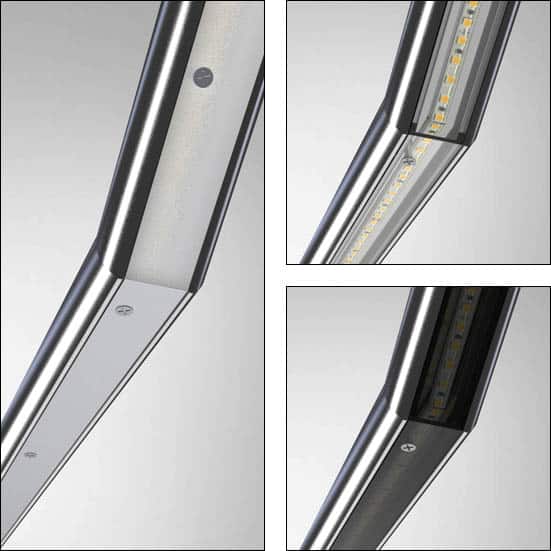

white satin acrylic glass (85% light transmission)
transparent polycarbonate glass – optional
glossy black acrylic glass (18% light transmission) – optional

Illuminant

LED 9,6 W/meter (1-row) = 860 lm/meter
optional 4,8 or 12,5 W/meter
Light color white (2700 K – 5000 K) or RGB
Light intensity and angle of radiation as required
CRI / RA > 90

Technology

Protection class IP54 | IP65 | IP67
Electrial safety class 1 | 2 | 3

We support you in the implementation of your handrail project, starting with advice, planning, through to production and on-side assembly.

We also offer the SMO professional kit for self-assembly for metal and electrical companies.

Call us, we will advise you!
Tel. +49 791/47077
