Pole light
LED-TAB TOP type 7/2

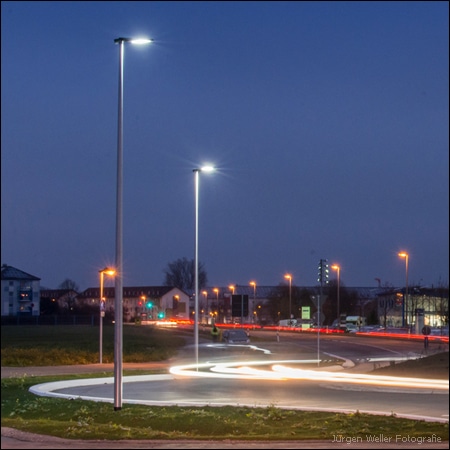

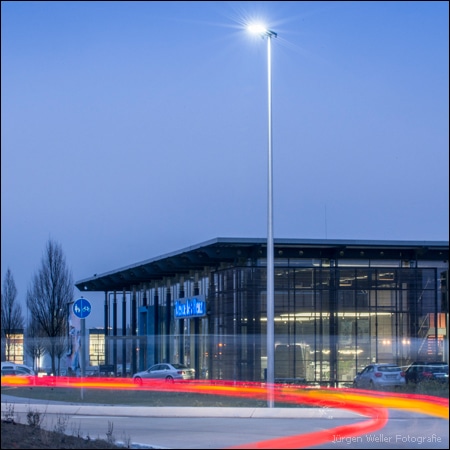

Pole light LED-TAB TOP type 7/2

Pole-top luminaire for streets, paths and public spaces

features

  • solid aluminum housing
    optionally stainless steel
  • Powder-coated surface RAL 9006

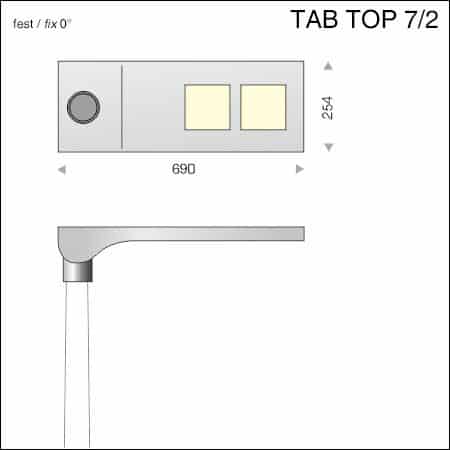

  • Orientation: straight 0°

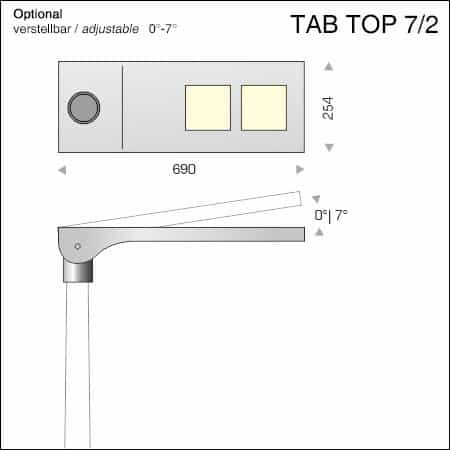

    optional: variable 0°, 7° and 11°
  • performance variants

    7/1
    :
    18 Watt   (3060 lm)
    35 Watt   (5610 lm)
    54 Watt   (9180 lm)

    7/2
    :
    36 Watt   (6120 lm)
    70 Watt (11220 lm)
    More performance levels on request
    Module with lens technology – format 120 × 120 mm
    (Radiation angle symmetrical or asymmetrical)
  • mit Vorschaltgerät
  • Impact-proof, dust-proof, jet-proof IP 65
  • Protection class 1 or 2

Mark of conformity

Home > Certification

Item-No.   Type Luminous flux  Illuminant
LED595600071PA     7/1       5610 lm LED 35 Watt
LED595600072PA     7/2     11220 lm LED 70 Watt

*LED related data can deviate due to innovation. Further illuminants and light intensities on request.

Download

Data sheet Pole light LED-TAB TOP Typ 7/1
Data sheet Pole light LED-TAB TOP Typ 7/2
Brochure Pole light LED-TAB TOP Typ 7

Poles Round tubular stainless steel
DataSheet Poles round tube cylindrical stainless steel

Assembly instructions Pole light LED-TAB TOP Typ 7

Light calculation

Modul 120×120 LDT / IES zip
