Hand Rail LAMANO U40x40
LED Handrail LAMANO U40x40
Our high-quality LAMANO U42 | U48 | U60 LED stainless steel handrail offers safety and support when climbing stairs and is particularly helpful in environments with poor lighting or limited visibility. The integrated LED lighting ensures even illumination of the handrail and the surrounding area. Our LED handrails are energy-efficient and consume less power than conventional lighting systems. They offer high-quality light while simultaneously contributing to lower energy costs. The LED lighting is characterized by its long lifespan and requires minimal maintenance.
U-Profile

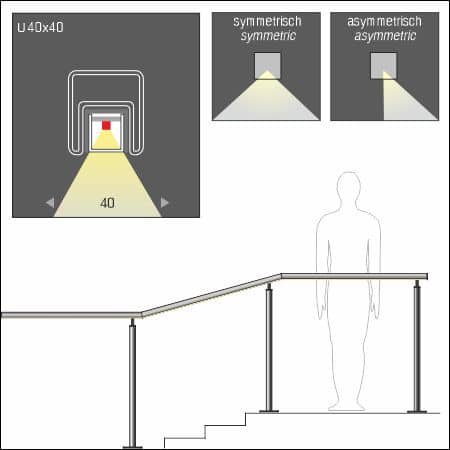

- Profile U40 x 40
- Stainless steel L304 (optionally L316)
- Surface glass bead blasted, polished or powder-coated
Protection cover
- white satin acrylic glass (85% light transmission)
- transparent polycarbonate glass – optional
- glossy black acrylic glass (18% light transmission) – optional
Illuminant
- LED 4 W/meter to 14.4 W/meter (corresponds to approx. 452 – 1700 lumens/meter)
Other wattages available upon request - Light color white (2700 K – 5000 K) or RGB
- Light intensity and angle of radiation as required
- CRI / RA 90
Technology
- Protection class IP54 | IP 65 | IP67
- Electrical safety class 1 | 2 | 3
Marks of conformity
Download
DataSheet Hand Rail LAMANO U40x40
Brochure LED handrails
Assembly instructions Hand Rail LAMANO U40x40
Checklist inquiry handrail
DataSheet – request sample

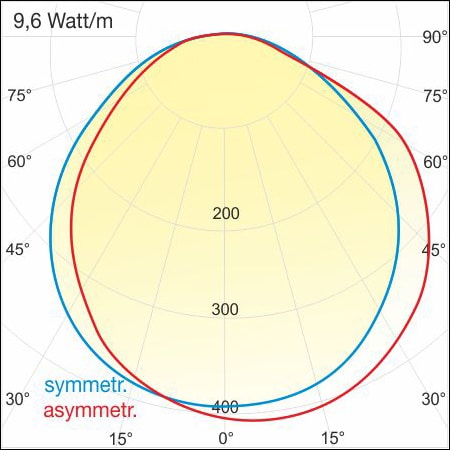

Lichtberechnung
LDT 4 W/meter LED handrail asymmetrical
LDT 8 W/meter LED handrail asymmetrical
LDT 4 W/meter LED handail symmetrical
LDT 8 W/meter LED handrail symmetrical
Mounting description
We support you in the implementation of your handrail project, starting with advice, planning, through to production and on-side assembly.
We also offer the SMO professional kit for self-assembly for metal and electrical companies.
Call us, we will advise you!
Tel. +49 791/47077
