Wall light
LED-TABULARE F

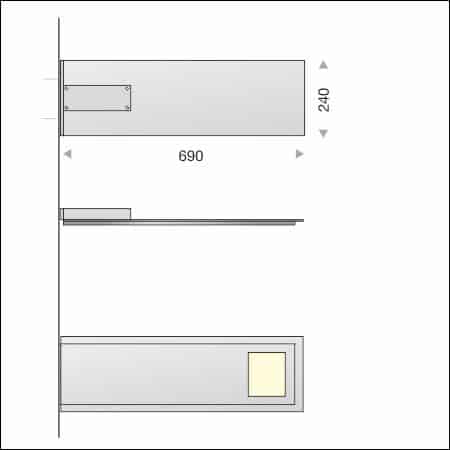

Wall light LED-TABULARE F

Wall luminare for exterior application
Solid flat-line wall luminaire (400 mA, 700 mA, 1050 mA), compliant with M-Class, S-Class / DIN EN 13201.

Areas of application:

exteriors

Characteristics:

• material: stainless steel / aluminum
• horizontal mounting
• powder coating according to RAL / DB
• high grade of heat / solar protection
• different light intensities available
• shock-resistant, dust-proof, water-jet proof IP65
• electrical safety class 1 or 2

Marks of conformity

Home > Certificates

Item-No. Luminous flux Illuminant
LED593F20111     2250 lm LED 18 Watt
LED593F40111     3600 lm LED 33 Watt
LED593F65111     5400 lm LED 54 Watt

*We reserve the right of changing specifications in case of technical improvement.

Download

DataSheet wall light LED-TABULARE F
Brochure  wall light LED-TABULARE F

Assembly instructions

Mounting instructions wall light LED-TABULARE F

Téléchargement

Fiche technique Applique murale LED-TABULARE F
