Light column CIRCOLO type 000/510 straight
Light column CIRCOLO type 000/510 straight
Design tube
- Tube Ø 114 mm or Ø 140 mm
- Stainless steel L304Â (optionally L316)
- Surface glass bead blasted
- Standpipe with holders, lasered from one piece
- Light outlet angle 360°
- HCI spotlight in upper part of tube
- Borosilicate covering-glass

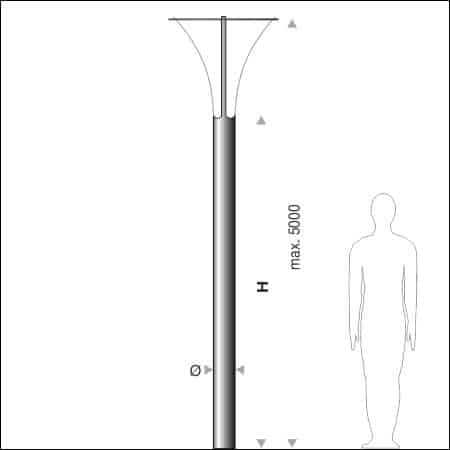

- Height max. 4800 mm
Reflector
- Stainless steel disc L304 Ø 600 mm (Tube Ø 114 mm)
- Stainless steel disc L304 Ø 700 mm (Tube Ø 140 mm)
- Underside white coated RAL 9016 (traffic white)
- Specular reflector on request
Light technology

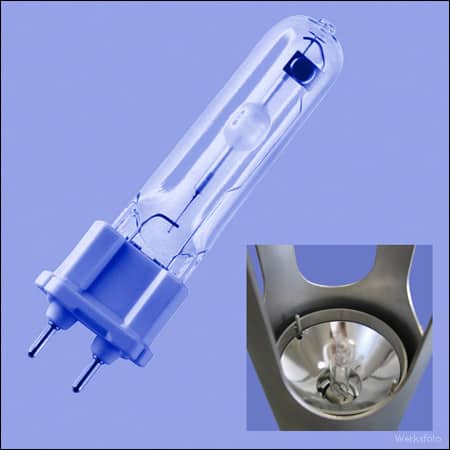

- HCI spotlight  35 / 70 / 150 W
- LED spotlight  30 / 40 / 90 W
- IP 65
- Protection class 1

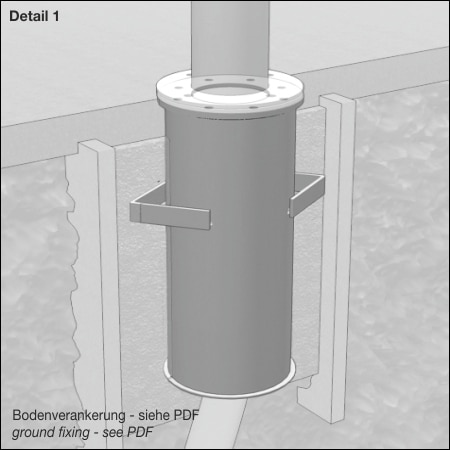

Ground mounting
- 360° rotatable
- Ground sleeve on request
Mark of conformity
Item-No.
Tube Ø
  H
IlluminantÂ
    507000510114035
 114
3000
HCI Â 35 Watt
    507000510114070
 114
3000
HCI Â 70 Watt
LED507000510114030
 114
3000
LED Â 30 Watt
LED507000510114040
 114
3000
LED Â 40 Watt
LED507000510114090
 114
3000
LED Â 90 Watt
    507000510140035
 140
4000
HCI Â 35 Watt
    507000510140070
 140
4000
HCI Â 70 Watt
    507000510140150
 140
4000
HCI 150 Watt
LED507000510140040
 140
4000
LED Â 40 Watt
LED507000510140090
 140
4000
LED Â 90 Watt
Available with direct connection (230/220/120/110V) no driver needed.
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
