Bollard light
COLLONA Q type 410
Bollard light COLLONA Q type 410

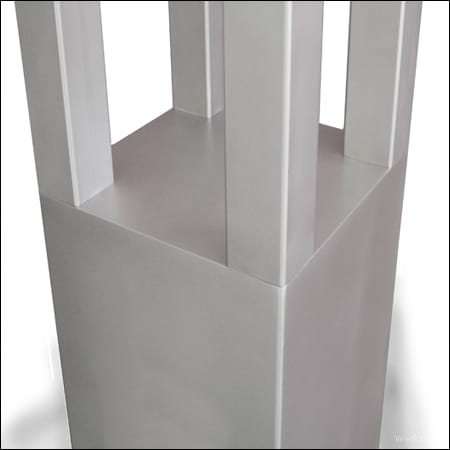

Standpipe and corner posts
- material: stainless steel L304 / L316
- standpipe: 200 x 200 mm
- corner posts: 4 x 40 x 40 mm

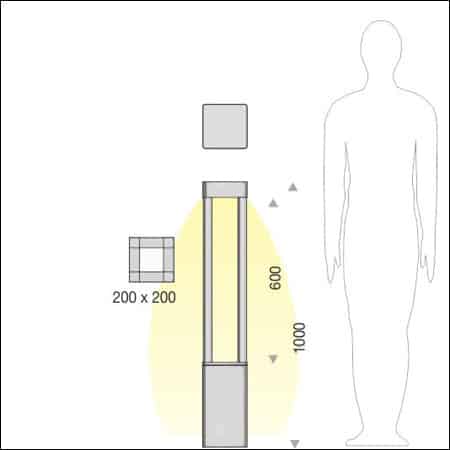

- standard height: 1000 mm
- surface glass bead blasted
- alternatively powder coated in RAL- / DB-colours

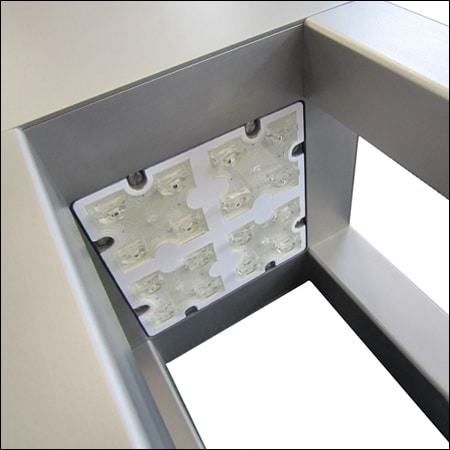

Lighting technology
- beam angle: symmetrical / asymmetrical
- luminous intensity: 2300 lm /4400 lm /6200 lumens*
- light temperature: 3000 K / 4000 K /5000K
- shock-, dust-, jet-proof
- protection class IP67
- electrical safety class 1 / 2
*Values in lm based on LED with 4000 K

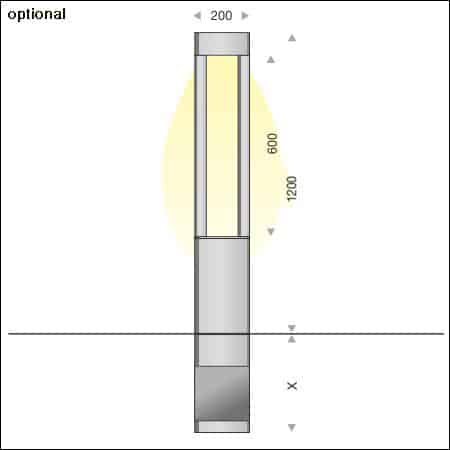

Ground mounting
- ground-U-profile (inside)
Mark of conformity
Item-N0.
lumens*
wattage*
beam-angle
total height**
LED505100410200/18
2315 lm
15 W
sym./asym.,
1000 mm
LED505100410200/34
4380 lm
33 W
sym./asym.,
1000 mm
LED505100410200/55
6180 lm
50 W
sym./asym.,
1000 mm
Possible colour temperatures: 3000 / 4000 / 5000 K
*Luminous flux related to version with 4000K
*We reserve the right of changing LED-specifications in case of technical improvement
**Further dimensions upon request
