Wall-mounted torch light
FIA type 105/151

Wall-mounted torch light FIA type 105/151

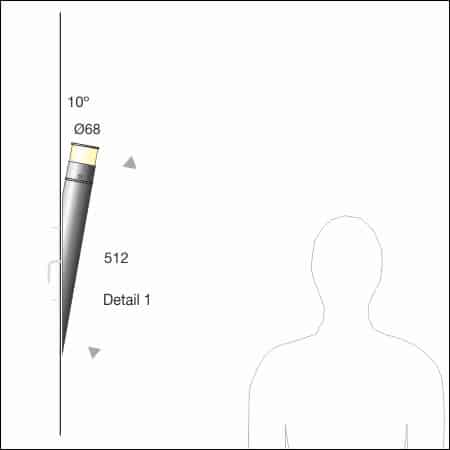

technical drawing Wall-mounted torch light FIA type 105/151

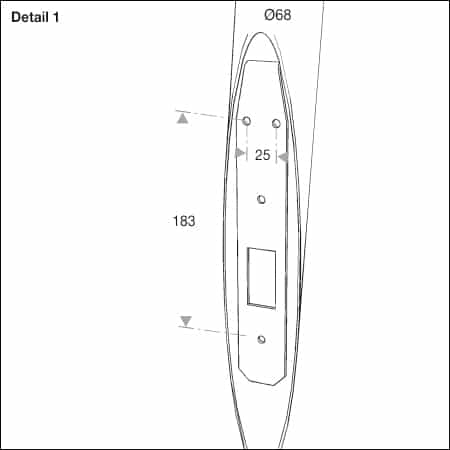

technical drawing Wall-mounted torch light FIA type 105/151

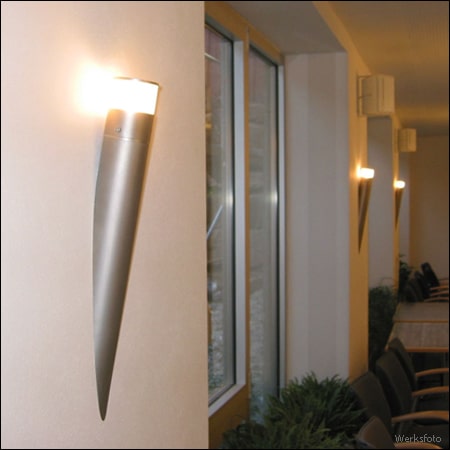

Wall-mounted torch light FIA type 105/151

Design tube

  • Ø68 mm stainless steel V2A / V4A
  • Surface glass bead blasted
  • Standard length A = 512 mm
  • Light outlet angle B = 360°

Protective tube

  • Protection glass transparent or frosted
  • Shockproof, dust-proof, jet-proof IP 65
  • Protection class 1 or 2

Marks of conformity

Home > Certificates

Item-No. Illuminant
       503105151HV G9   48 Watt
LED503105151000 LED    13 Watt

Further models and illuminants on request.

*We reserve the right of changing specifications in case of technical improvement.

Download

DataSheet  wall-mounted torch FIA type 105/151
Brochure  wall-mounted torch FIA type 105/151

Assembly instructions

Assembly instruction  wall-mounted torch light FIA type 105/151

Téléchargement

Fiche technique torche murale light FIA type 105/151
