Wall light
LED-TABULARE A

Wall Light LED-TABULARE A

Wall luminaire for exterior application

Characteristics:

  • solid aluminium case – surface powder-coated RAL 7016
  • protection glass transparent with lens optic – asymmetrical light distribution
  • with power supply adapter
  • different light intensities available
  • shock-resistant, dust-proof, water-jet proof IP67
  • electrical safety class 1 or 2

Marks of conformity

Home > Certificates

Item-No. Illuminant
Typ M 20 WL LED 18 Watt
LED593M20111 100-240 VAC / 24 Volt / 2250 Lumen

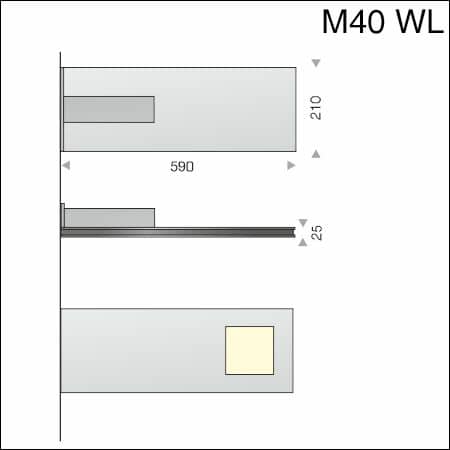

Typ M 40 WL LED 35 Watt
LED593M40111 100-240 VAC / 24 Volt / 4760 Lumen

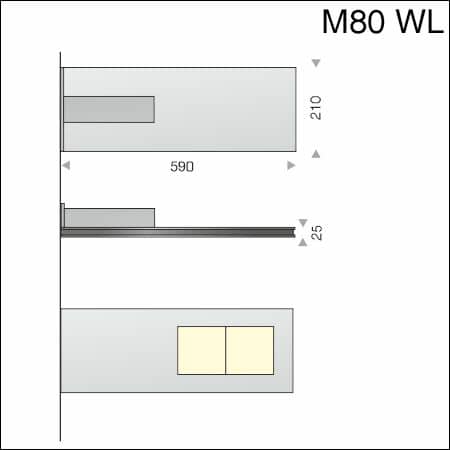

Typ M 80 WL LED 70 Watt
LED593M80111 100-240 VAC / 24 Volt / 9520 Lumen

Further illuminants and information on request.

*Technical specifications can change due to improvement of our products.

Download

DataSheet Wall light TABULARE A WL
Brochure Wall light TABULARE A

Mounting instructions

Mounting instructions Wall light TABULARE A WL

Téléchargement

Fiche technique applique TABULARE A40 WL
