Wall light
FIACCOLA type 141

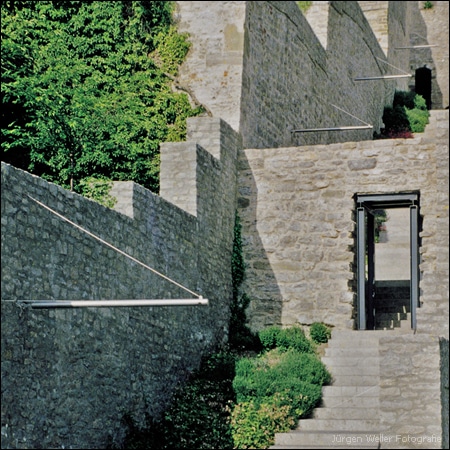

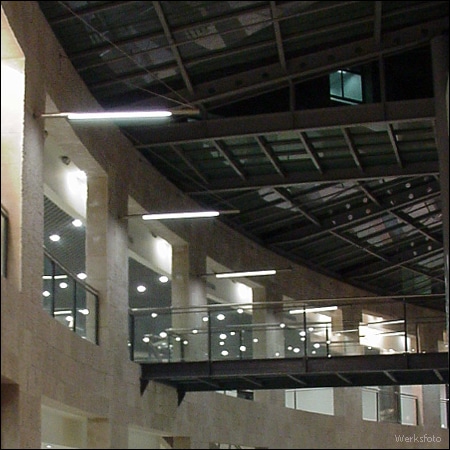

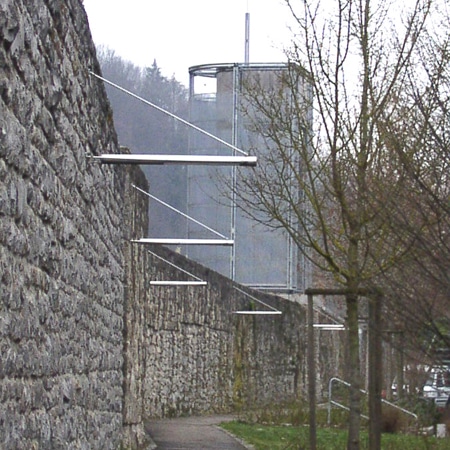

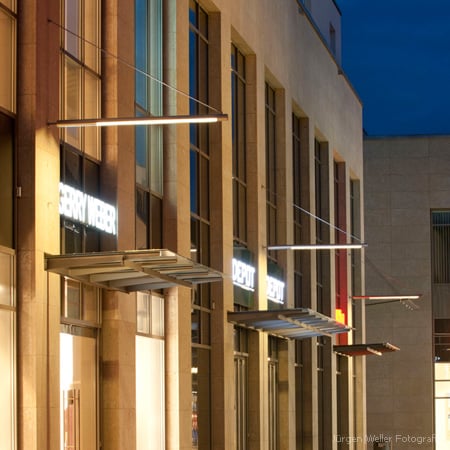

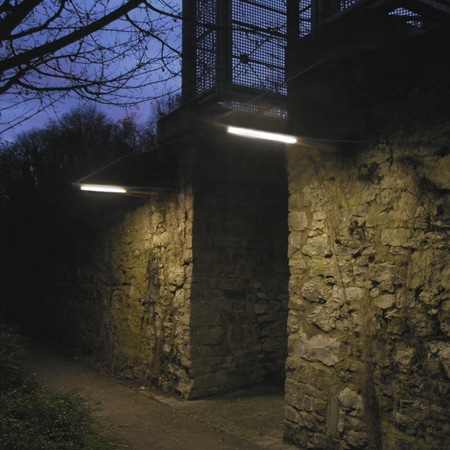

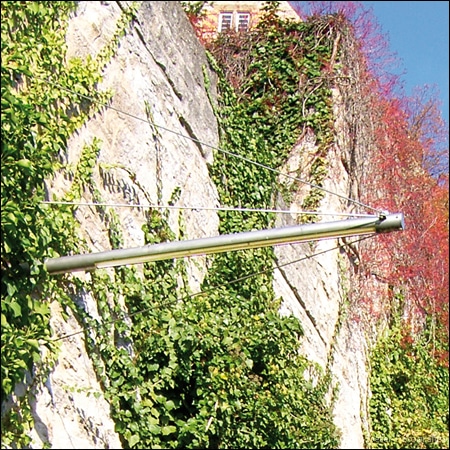

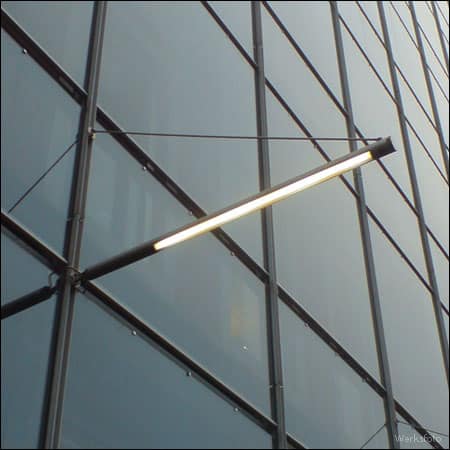

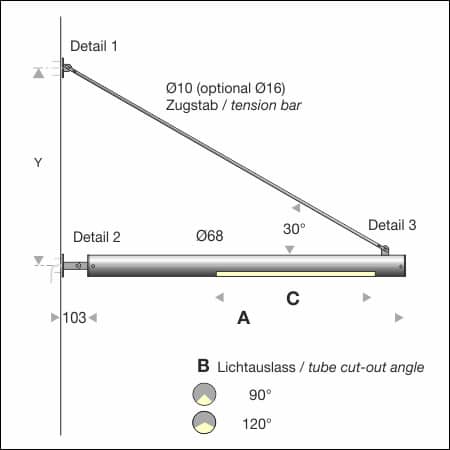

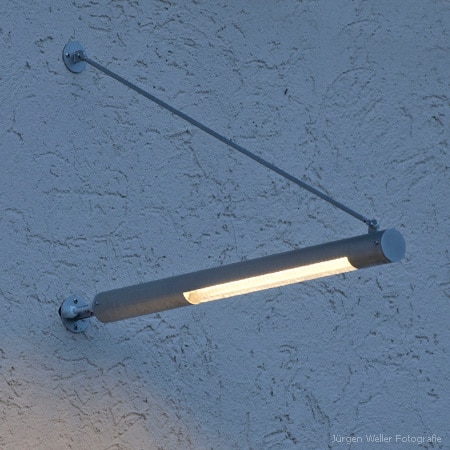

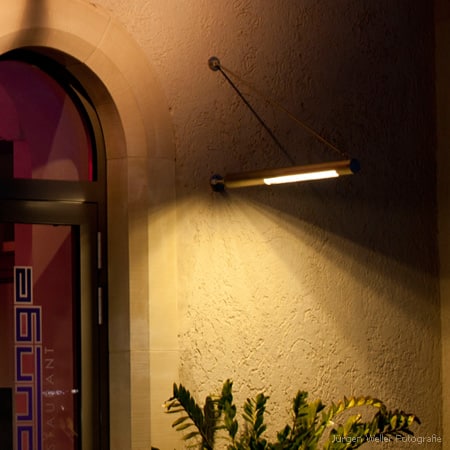

Wall light FIACCOLA type 141 horizontally mounted by tension bar
Design tube
- Ø68 mm stainless steel V2A / V4A
- Surface: glass bead blasted
- Standard lengths A = 1000, 1700, 2070 mm

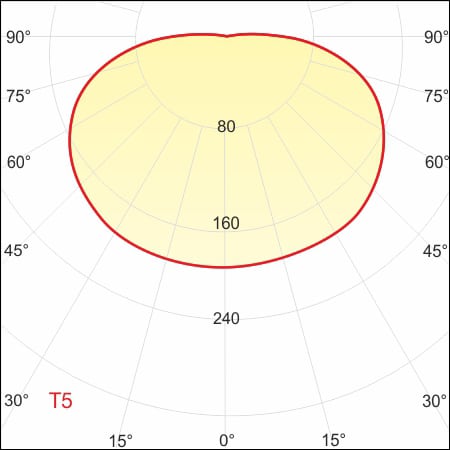

- Light outlet angle B = 90°, 120°
Protective tube
- Polycarbonate protection glass transparent / frosted
- Shockproof, dust-proof, jet-proof IP 65
- Protection class 1 or 2
Marks of conformity
Item-No.
A
B
C

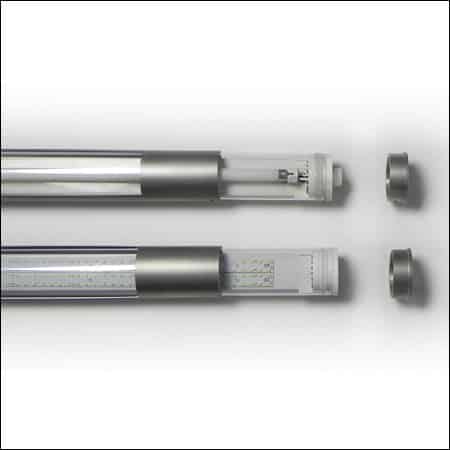

Illuminant
T50500045141
1000
90°
500
T5 24 Watt
T50500050141
1000
120°
500
T5 24 Watt
T50500065141
1700
90°
1100
T5 49 Watt
T50500070141
1700
120°
1100
T5 49 Watt
T50500085141
2070
90°
1400
T5 54 Watt
T50500090141
2070
120°
1400
T5 54 Watt
LED500045141
1000
90°
560
LED 9 Watt
LED500050141
1000
120°
560
LED 9 Watt
LED500065141
1700
90°
1120
LED 18 Watt
LED500070141
1700
120°
1120
LED 18 Watt
LED500085141
2070
90°
1400
LED 22,5 Watt
LED500090141
2070
120°
1400
LED 22,5 Watt
*all dimensions in mm
Light colour: T5 830 ww / 840 nw, LED 3000/4000/5000 K
Available with 230V direct connection, no driver needed!
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
Download
DataSheet Wall Light FIACCOLA type 141
Brochure Wall Light FIACCOLA type 141

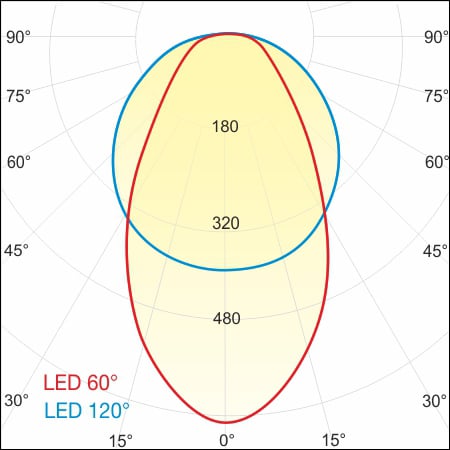

IES-Data
