Wall light
FIACCO Type 510/060

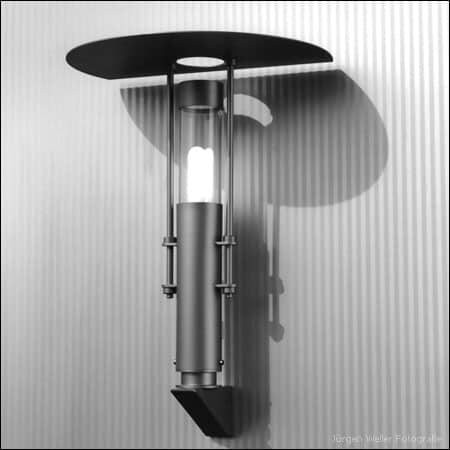

Wall light FIACCO Type 510/060

Wall luminaire made of stainless steel, for outdoor / inner area

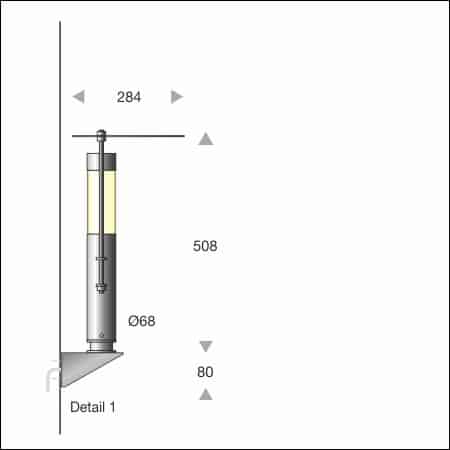

Design tube

· Ø68 mm stainless steel V2A / V4A
· Surface glass bead blasted
· Standard length 508 mm

Protective tube

· Protection glass (polycarbonate) transparent or frosted
· Shockproof, dust-proof, jet-proof IP 65
· Protection class 1 or 2

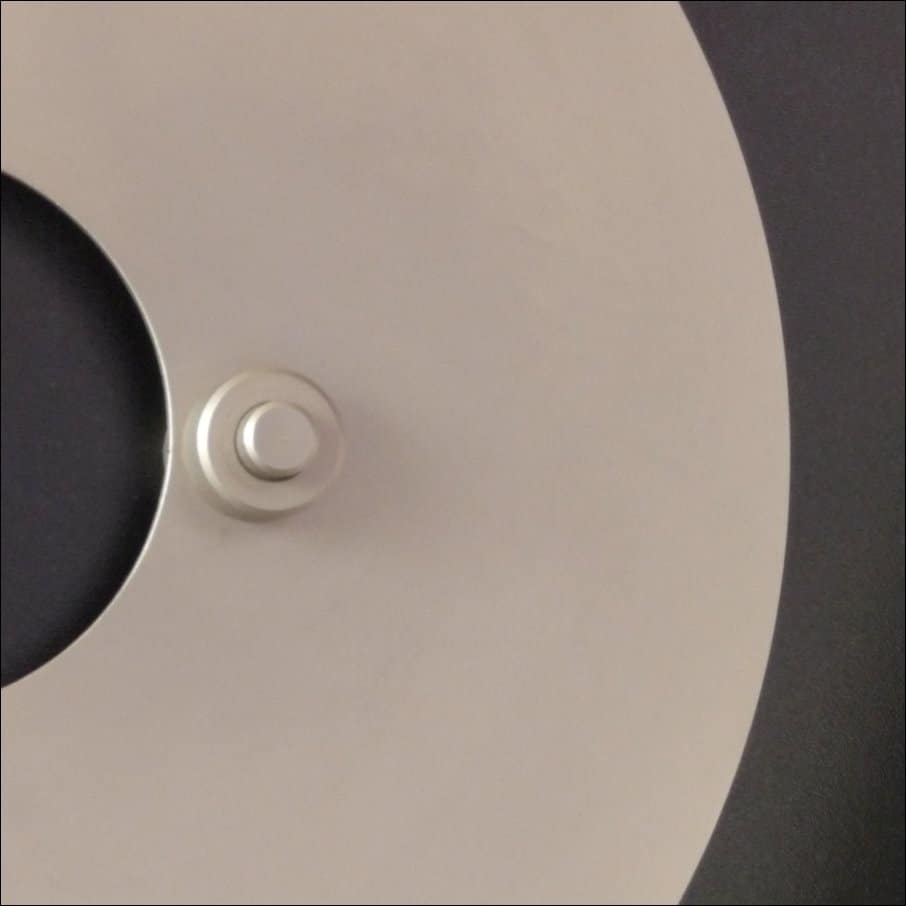

Reflector disc

· stainless steel V2A / V4A
· surface glass bead blasted
· circle Ø 284 mm

Marks of conformity

Home > Certificates

Order-No. Illuminant
501510060 PL-C 22 Watt
LED501510060000 LED  15 Watt

Light colour: T5 830 ww / 840 nw, LED 2700 K – 5000 K

Available with direct connection (230/220/120/110V) no driver needed.

Further models and illuminants on request.

*We reserve the right of changing specifications in case of technical improvement.

Download

DataSheet wall light FIACCO type 510/060
Brochure wall light FIACCO type 510/060

IES-Data

Assembly Instructions

Assembly Instructions wall light FIACCO type 510/060
