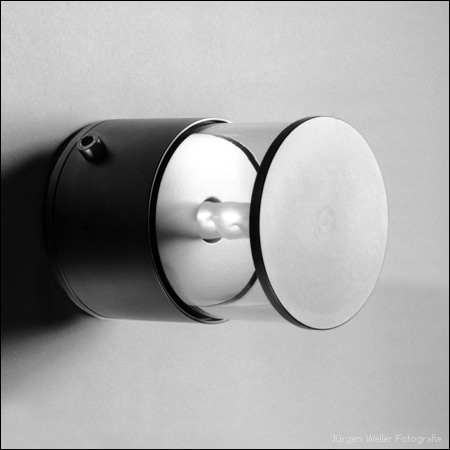

Wall light / Ceiling light
FIA type A + B 360°
Wall light / Ceiling light FIA type A + B 360°

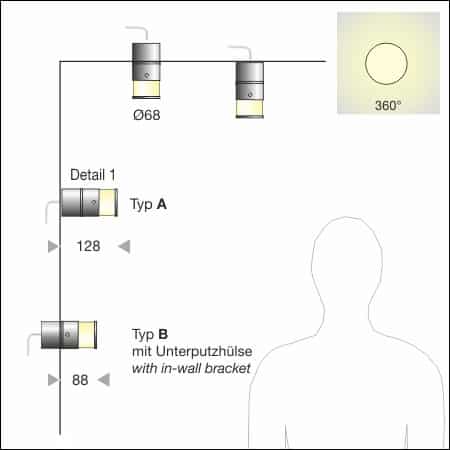

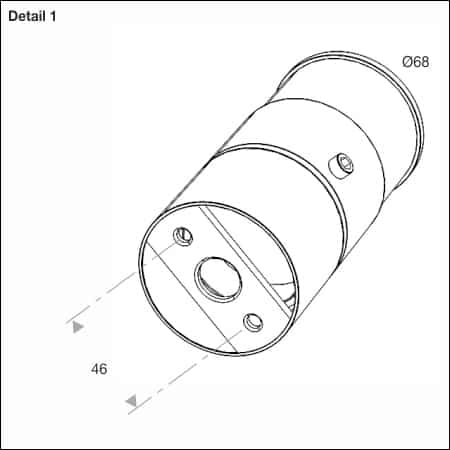

Design tube
- Ø68 mm stainless steel V2A /V4A
- Surface glass bead blasted
- Standard length with design case A = 128 mm
- Standard length wall integrated A = 88 mm
- Light outlet angle B = 360°
Protective tube
- Polycarbonate / borosilicate glass, transparent or frosted
- Shockproof, dust-proof, jet-proof IP 65
- Protection class 1 or 2
Marks of conformity
Item-No.
Type
Illuminant
503101060HV
A
HV-G9 48 Watt
LED503101060000
A
LED 13 Watt
503106060HV
B
HV-G9 48 Watt
LED503106060000
B
LED 13 Watt
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
