Wall light / Ceiling light
FIA Type A + B 180°

Wall light / Ceiling light FIA Type A + B 180°

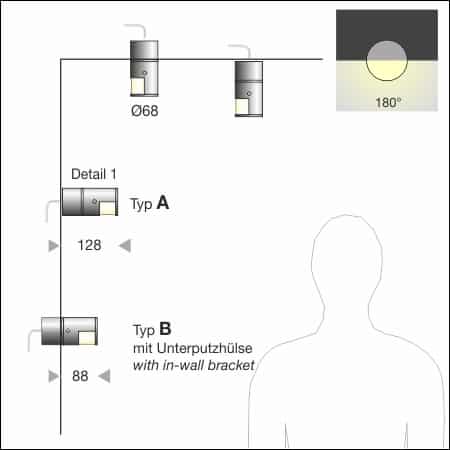

technical drawing Wall light / Ceiling light FIA Type A + B 180°

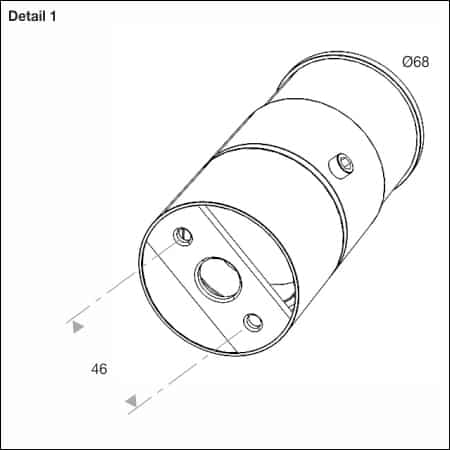

technical drawing wall light FIA Type A + B 180°

Wall light / Ceiling light FIA Type A + B 180°

Casing

  • Ø68 mm stainless steel V2A / V4A
  • Surface glass bead blasted
  • Standard length  A = 128 mm
  • Standard length wall integrated A = 88 mm
  • Light outlet angle B = 180°

Protective tube

  • Borosilicate glass transparent or frosted
  • Shockproof, dust-proof, jet-proof IP 65
  • Protection class 1 or 2

Marks of conformity

Home > Certificates

Item-No. Type Illuminant
       503101060HV  A HV-G9  48 Watt
LED503101060000  A LED      13 Watt
       503106060HV B HV-G9  48 Watt
LED503306060000 B LED      13 Watt

Further models and illuminants on request.

*We reserve the right of changing specifications in case of technical improvement.
