Wall light / Ceiling light
ANGOLARE type 565/585
Wall light / Ceiling light ANGOLARE type 565/585
On- and in-wall light panels for interior and exterior application.

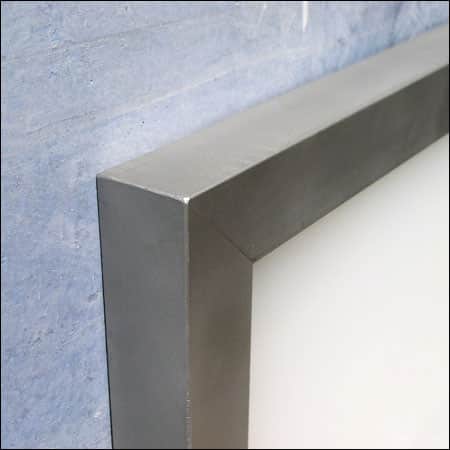

Frame
- profile 40 x 40 x 3 mm
- stainless steel V2A / V4A or aluminium
- surface glass bead blasted or painted in RAL 9006 aluminium white (further RAL colours on request)

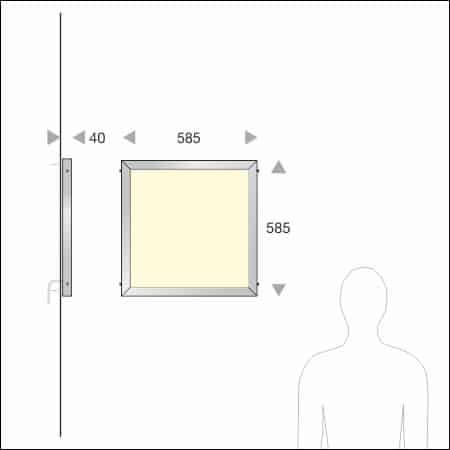

- standard formate (height x width x depth): 585 x 585 x 40 mm
- further dimensions on request
Luminous surface
- special light diffuser screen made of frosted acrylic glass t = 6 mm
Safety
- protection category IP 65
- protection class 1 or 2
Marks of conformity
Item-No.
Dimension
Illumenant
T50565585V2A
585 x 585 mm
4x T5 à 14 Watt
T50565585ALU
585 x 585 mm
4x T5 à 14 Watt
LED565585V2A
585 x 585 mm
LED 11 Watt
LED565585ALU
585 x 585 mm
LED 11 Watt
T50565625V2A
625 x 625 mm
4x T5 à 14 Watt
T50565625ALU
625 x 625 mm
4x T5 à 14 Watt
LED565625V2A
625 x 625 mm
LED 11 Watt
LED565625ALU
625 x 625 mm
LED 11 Watt
Further models on request.
*We reserve the right of changing specifications in case of technical improvement.
Download
DataSheet wall light / Ceiling light ANGOLARE type 565/585
Brochure wall light / Ceiling light ANGOLARE type 565/585
Assembly instructions
Assembly instructions wall light / Ceiling light ANGOLARE type 565/585
