Wall light / Ceiling light
ANGOLARE SR

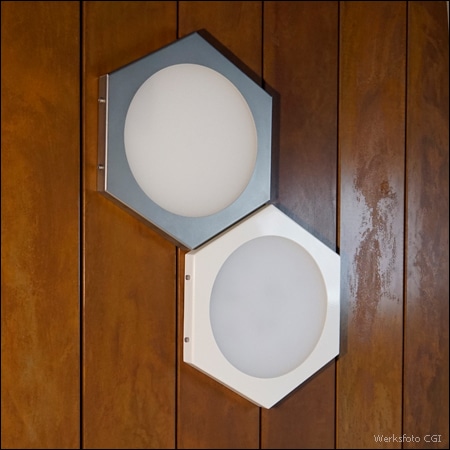

two Wall light / Ceiling light ANGOLARE SR, color silver and white

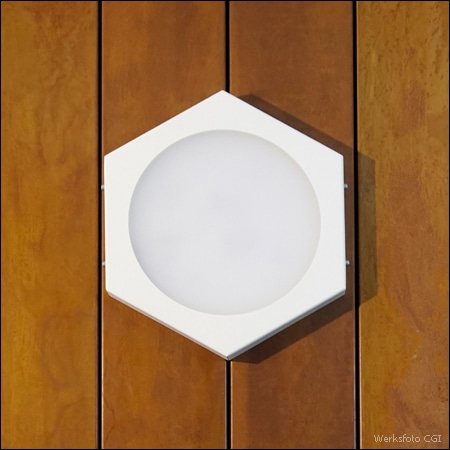

Wall light / Ceiling light ANGOLARE SR, color white

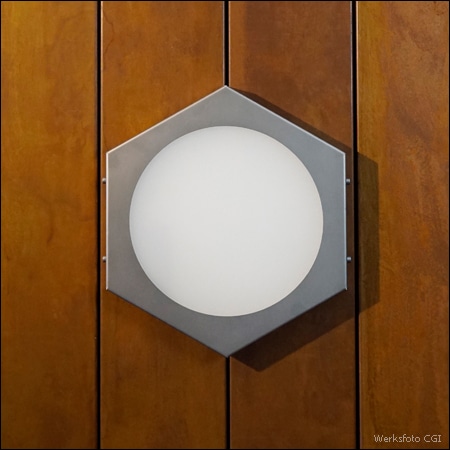

Wall light / Ceiling light ANGOLARE SR, color silver
two Wall light / Ceiling light ANGOLARE SR, color silver and white

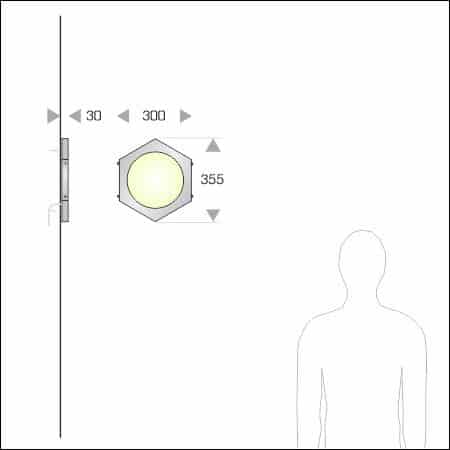

Wall light / Ceiling light ANGOLARE SR - technical drawing

Wall light / Ceiling light ANGOLARE SR

This minimalist Wall light / Ceiling light ANGOLARE SR offers a uniform circular light field surrounded by an angled housing made of stainless steel, for many indoor and outdoor applications. The LED module is protected by a frosted acrylic glass with high light transmission, the housing is available with powder coating in RAL9006 and further colours.

Characteristics

  • Stainless steel V2A
  • Surface: RAL 9006 (optionally RAL according to your wishes or stainless steel glass bead blasted)
  • Dimensions (H x W x D): 300 x 355 x 30 mm
  • Acrylic diffusor glass t = 6 mm
  • Protection IP54 (optionally IP65)
  • Electrical safety class 1

Marks of conformity

Home > Certificates

Item-No. Illuminant
LED567300025830 300 x 355   3000K 2300 lm 23 Watt
LED567300025840 300 x 355   4000K 2300 lm 23 Watt

*Technical specifications can change due to improvement of our products.

Further versions upon request.

Download

Data sheet Wall light / Ceiling light ANGOLARE SR

Mounting instructions
