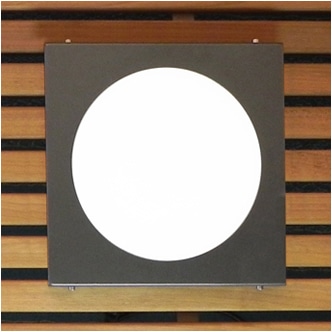

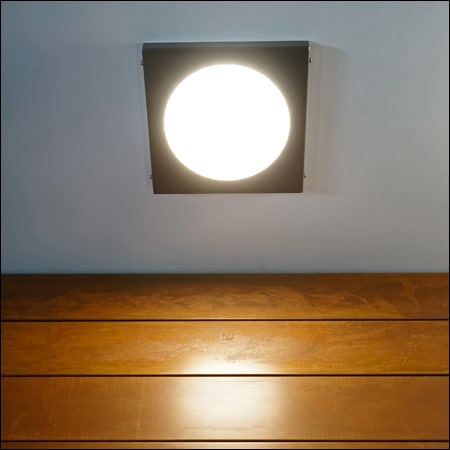

  • Wall light / Ceiling light ANGOLARE QR, color grey
  • Wall light / Ceiling light ANGOLARE QR, color grey

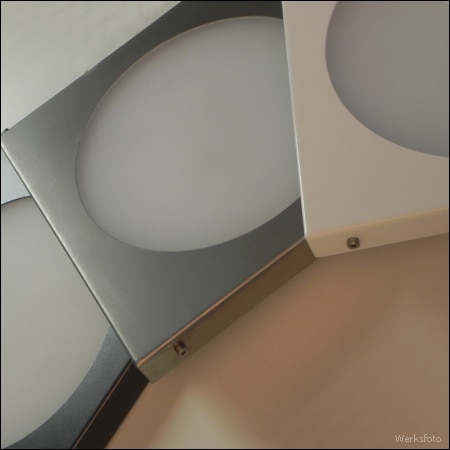

  • three Wall light / Ceiling light ANGOLARE QR in silver, Grey and white

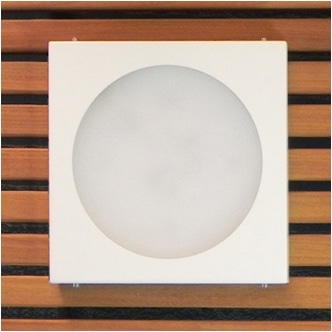

  • Wall light / Ceiling light ANGOLARE QR, color white

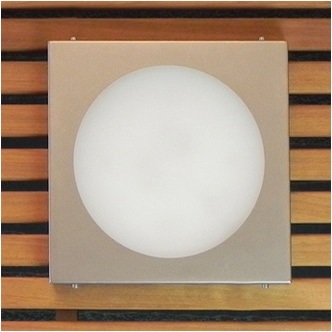

  • Wall light / Ceiling light ANGOLARE QR, color silver
  • Wall light / Ceiling light ANGOLARE QR

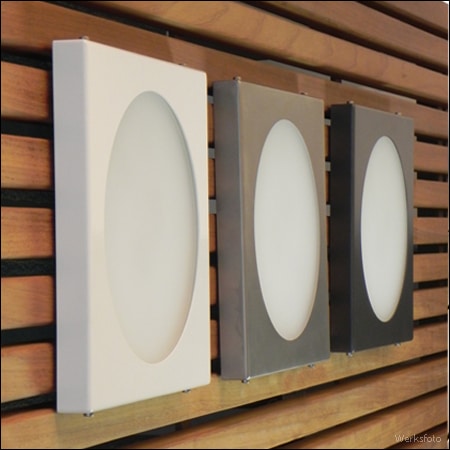

  • three Wall light / Ceiling light ANGOLARE QR in silver, Grey and white

Wall light / Ceiling light ANGOLARE Q/R

This minimalist Wall light / Ceiling light ANGOLARE Q/R offers a uniform circular light field surrounded by an angled housing made of stainless steel, for many indoor and outdoor applications. The LED module is protected by a frosted acrylic glass with high light transmission, the housing is available with powder coating in RAL9006 and further colours upon request.

Characteristics

  • Stainless steel V2A
  • Surface: RAL 9006

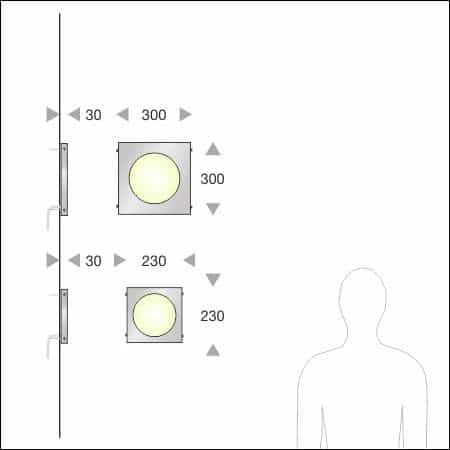

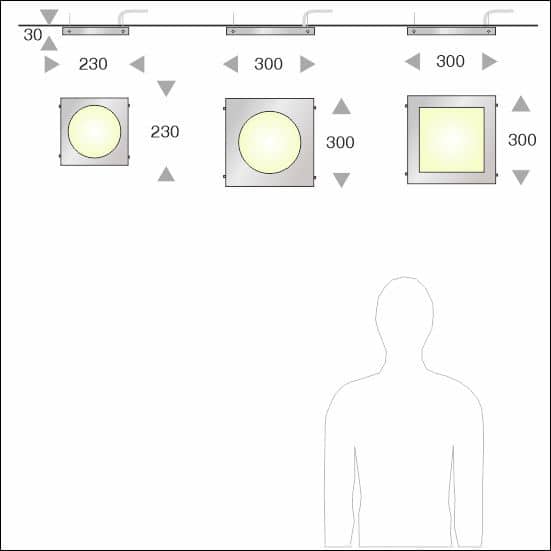

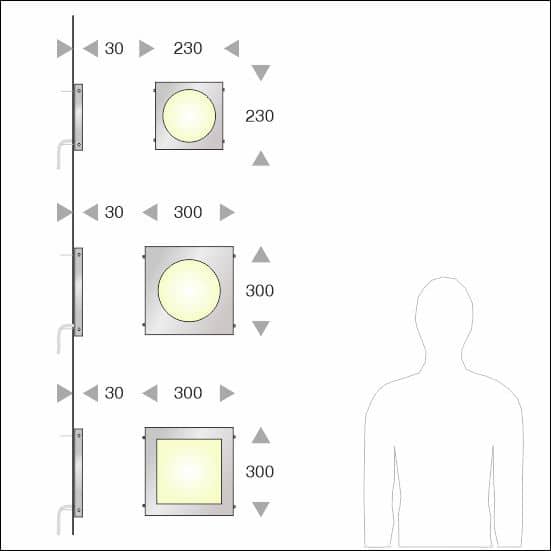

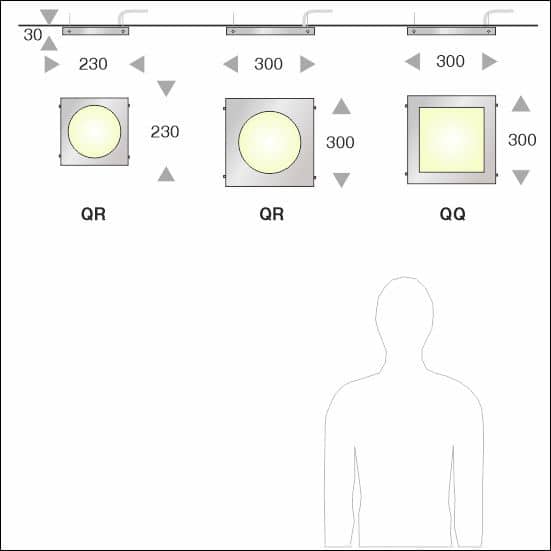

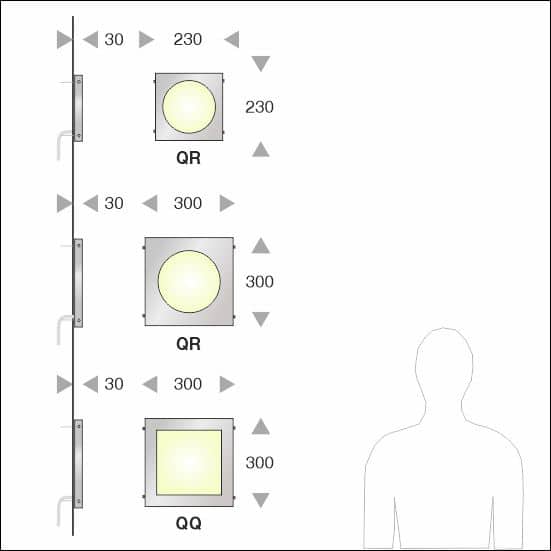

  • Dimensions (H x W x D): 300 x 300 x 30 mm or 230 x 230 x 30 mm
  • Acrylic diffusor glass t = 6 mm
  • Protection IP54 / IP65
  • Electrical safety class 1

Marks of conformity

Home > Certificates

Item-No. Type Illuminant
LED566230025830 QR 230 x 230 3000K   1500 lm   15 Watt
LED566230025840 QR 230 x 230 4000K   1500 lm   15 Watt
LED566300025830 QR 300 x 300 3000K   2300 lm   21 Watt
LED566300025840 QR 300 x 300 4000K   2500 lm   21 Watt
LED565300025830 QQ 300 x 300 3000K   2300 lm   21 Watt
LED565300025840 QQ 300 x 300 4000K   2500 lm   21 Watt

*Technical specifications can change due to improvement of our products.

Further versions upon request.

Download

Data sheet Wall light / Ceiling light ANGOLARE  QR
Prospect Wall light / Ceiling light ANGOLARE  QR

Mounting instructions

Assembly instructions Wall light / Ceiling light ANGOLARE QR
