Recessed light / surface-mounted light LED LINE U60

Recessed light / surface-mounted light LED LINE U60 – width 62mm

Robust LED luminaire with linear design for outdoor use

U-profile

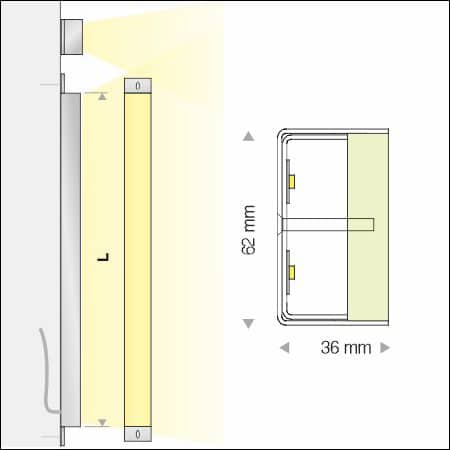

  • Profile U 62 x 36 mm
  • Stainless steel V2A (L304), optionally V4A (L316)
  • Glass bead blasted surface
  • Polished or powder-coated in RAL and DB colours on request

Protective cover

  • Polycarbonate (PC) transparent or frosted
  • 12 mm thick

Light source

  • 2x LED light strip
  • Light colour (2700 / 3000 / 4000 / 5000 K) or RGB
  • Luminous intensity (optionally dimmable) and beam angle as required
  • 28 watts / 1800 lm
  • 24 V

Technology

  • Protection class IP67
  • Protection class 2

Marks of conformity

Home > Certification

Standard lengths L1190 mm and L1440 mm
Other lengths on request

Download data sheet

Data sheet recessed light / surface-mounted light LED Line U60
