Pole light
LED-TABULARE M Tandem

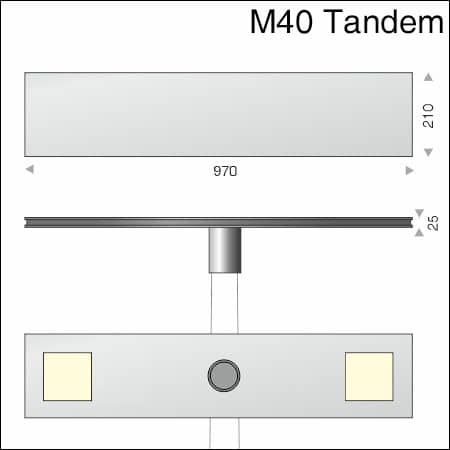

Pole light LED-TABULARE M Tandem

Pole-top tandem luminaire for public / street lighting

Solid aluminium cased luminaire, equipped with highly qualitative and efficient LED illuminants.

Areas of application:

Streets, public places

Characteristics:

  • solid aluminium case – powder-coated RAL 7016
    (further colors on request)
  • pole tenon for Ø76 mm (further mountings and diameters on request)
  • protection glass transparent with lens optic – asymmetrical light distribution
  • with power supply adapter
  • shock-resistant, dust-proof, water-jet proof IP67
  • electrical safety class 1 or 2

Marks of conformity

Home > Certificates

Item-No. Illuminant
Typ M 40 Tandem LED 2x 35 Watt
LED593M40600022T 100-240 VAC / 24 Volt / 2x 4760 Lumen
Typ M 80 Tandem LED 2x 70 Watt
LED593M80600022T 100-240 VAC / 24 Volt / 2x 6210 Lumen

*Technical specifications can change due to improvement of our products.

Further illuminants and light intensities on request.
