Pole light
LED-TABULARE M

Pole light LED-TABULARE M

Pole-top luminaire

Areas of application:

Streets, public places

Characteristics:

  • solid aluminium case
  • pole tenon for Ø76 mm (further mountings and diameters on request)
  • protection glass transparent or non-reflecting
  • connection or by mains adapter
  • different light intensities available
  • shock-resistant, dust-proof, water-jet proof IP65
  • electrical safety class 1 or 2

Marks of conformity

Home > Certificates

Item-No.
Illuminant

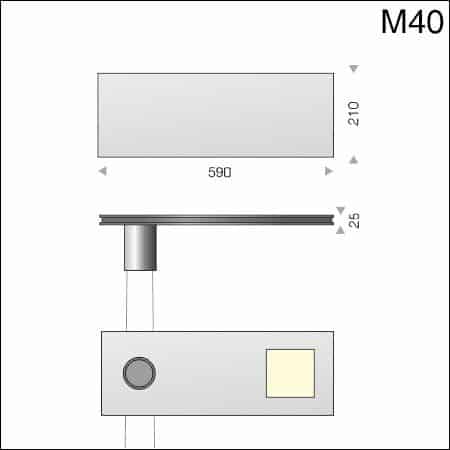

Typ M 40 LED 18 – 55 Watt
LED593M40600 100-240 VAC / 24 Volt / 2250 – 6210 Lumen

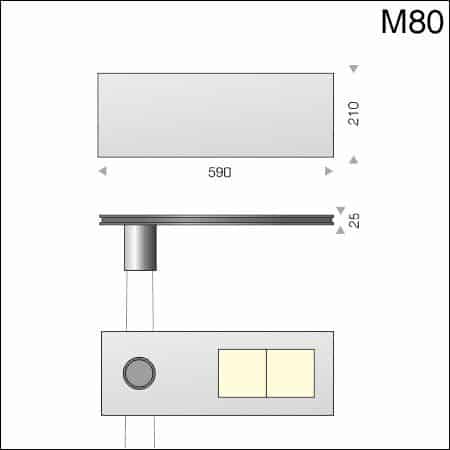

Typ M 80 LED 70 – 110 Watt
LED593M80600 100-240 VAC / 24 Volt / 9520 – 12420 Lumen

Further illuminants and information on request.

*Technical specifications can change due to improvement of our products.

Download

Brochure Pole light LED-TABULARE M
DataSheet Poles round tube cylindrical stainless steel
DataSheet Pole Round tubular steel

Light calculation

Modul 120×120 LDT / IES zip

Assembly instruction

Assembly instructions Pole light LED-TABULARE M

Téléchargement

Fiche technique LED-TABULARE M
