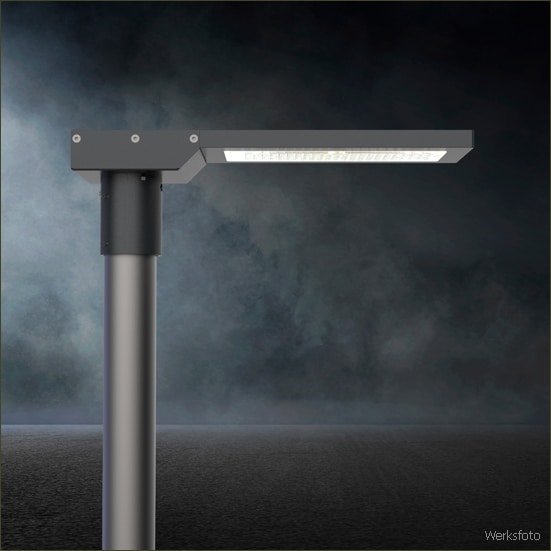

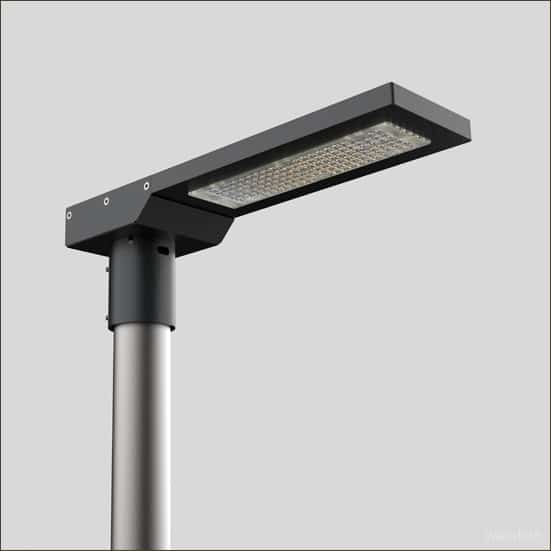

Pole light LED-TAB TOP Typ 8
Pole Light LED-TAB TOP Typ 8
Pole light for streets, paths and public places
Features
- solid aluminium housing
- Powder-coated surface RAL 9006
optionally: RAL- and DB-colours an request

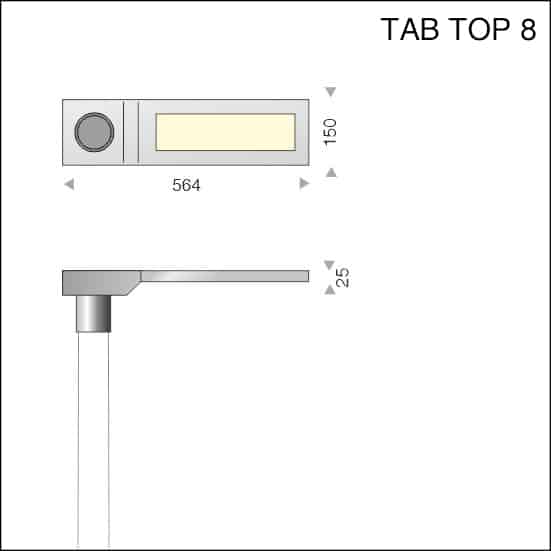

- Orientation: straight 0°

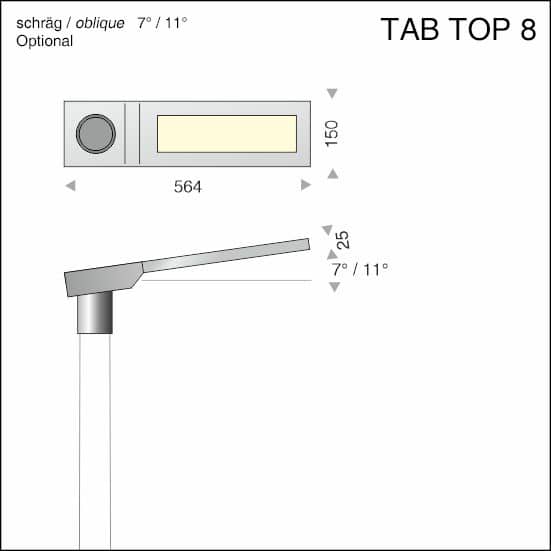

optionally: 7° and 11° - Performance-Variants:
32-60 Watt (4650-8750 lm)
3 different optical lens covers for different lighting-requrements
Light colour: 4000 Kelvin
3000K, 5000K, 6500K on request
module with lence-technology – format 319 x 84 mm light outlet
beam angle: asymmetrical - with power-supply unit
- impact-proof, dust-proof, jet-proof IP 65
- Prtection class 1 or 2
- prepared for pole mounting Ø76 mm
optionally: more Ø on request
Mark of conformity
Item-No.
Light colour
Lence cover
Illuminant
LED598600061
4000

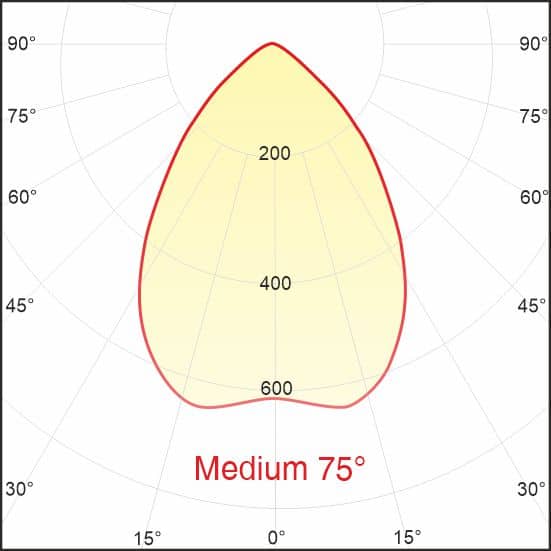

Medium 75°
LED 32-60 Watt 4650-8750 lm
LED598600062
4000

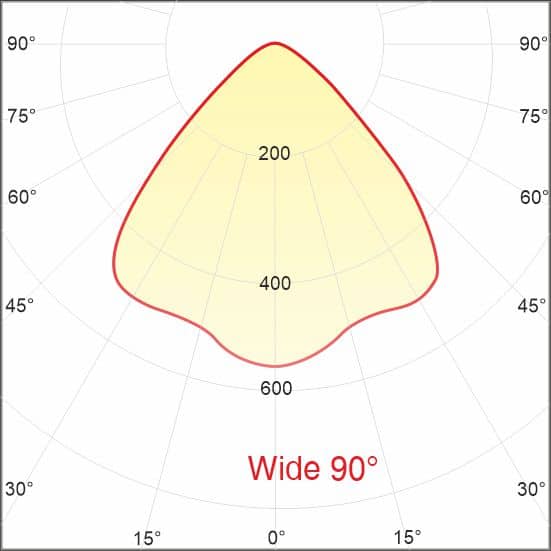

Wide 90°
LED 32-60 Watt 4650-8750 lm
LED598600063
4000

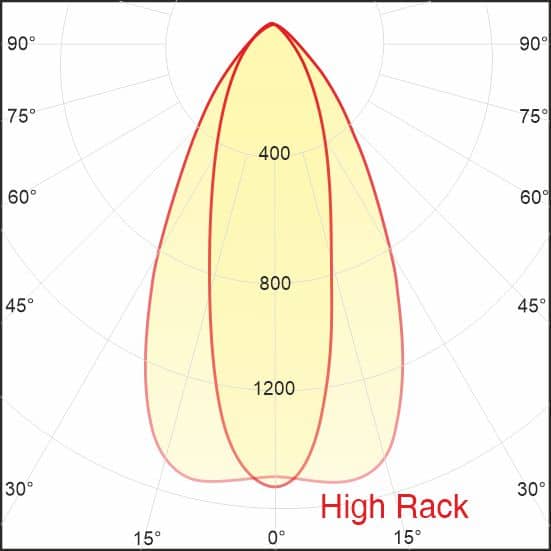

High Rack
LED 32-60 Watt 4650-8750 lm
*Änderungen aufgrund technischer Neuerungen behalten wir uns vor.
Further variants on request.
