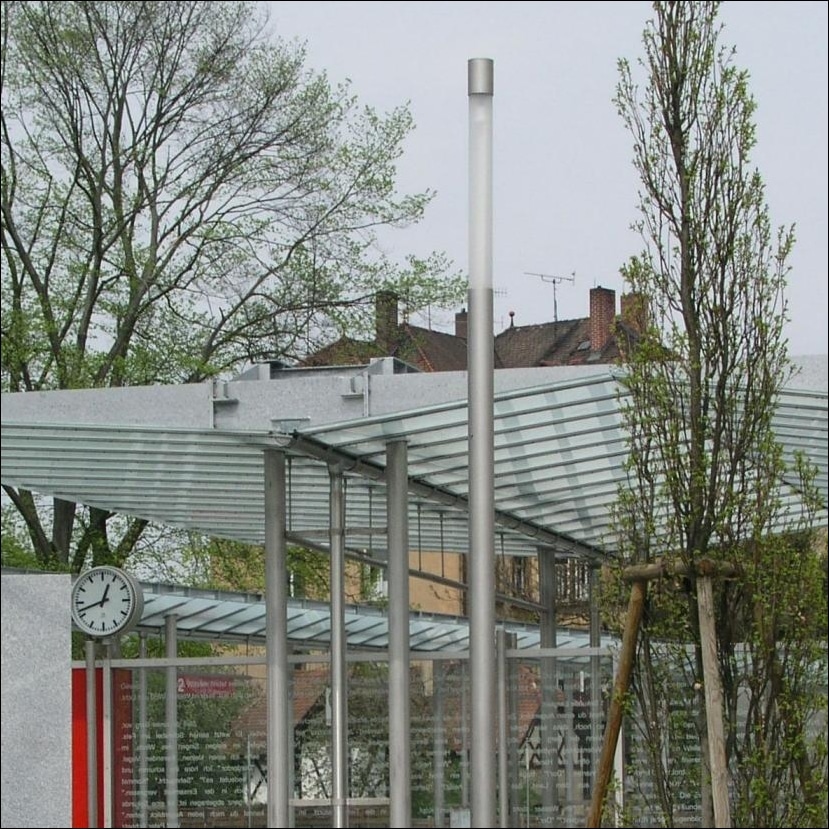

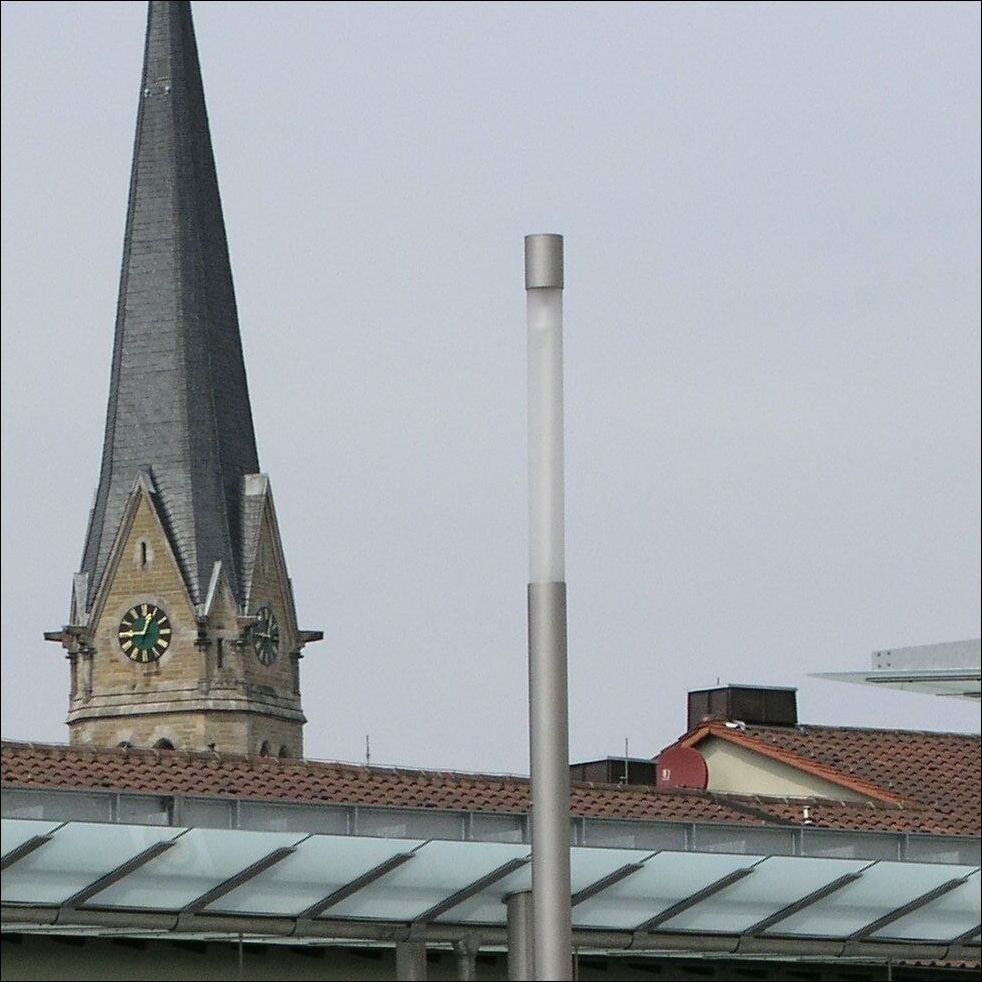

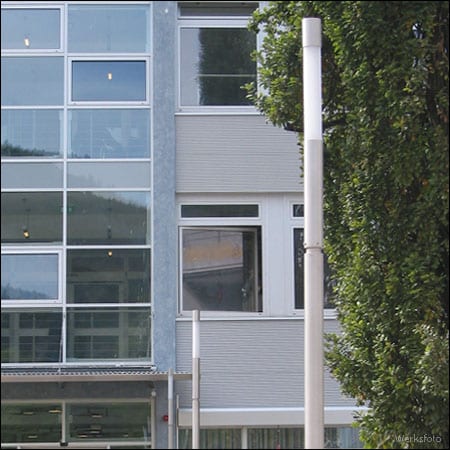

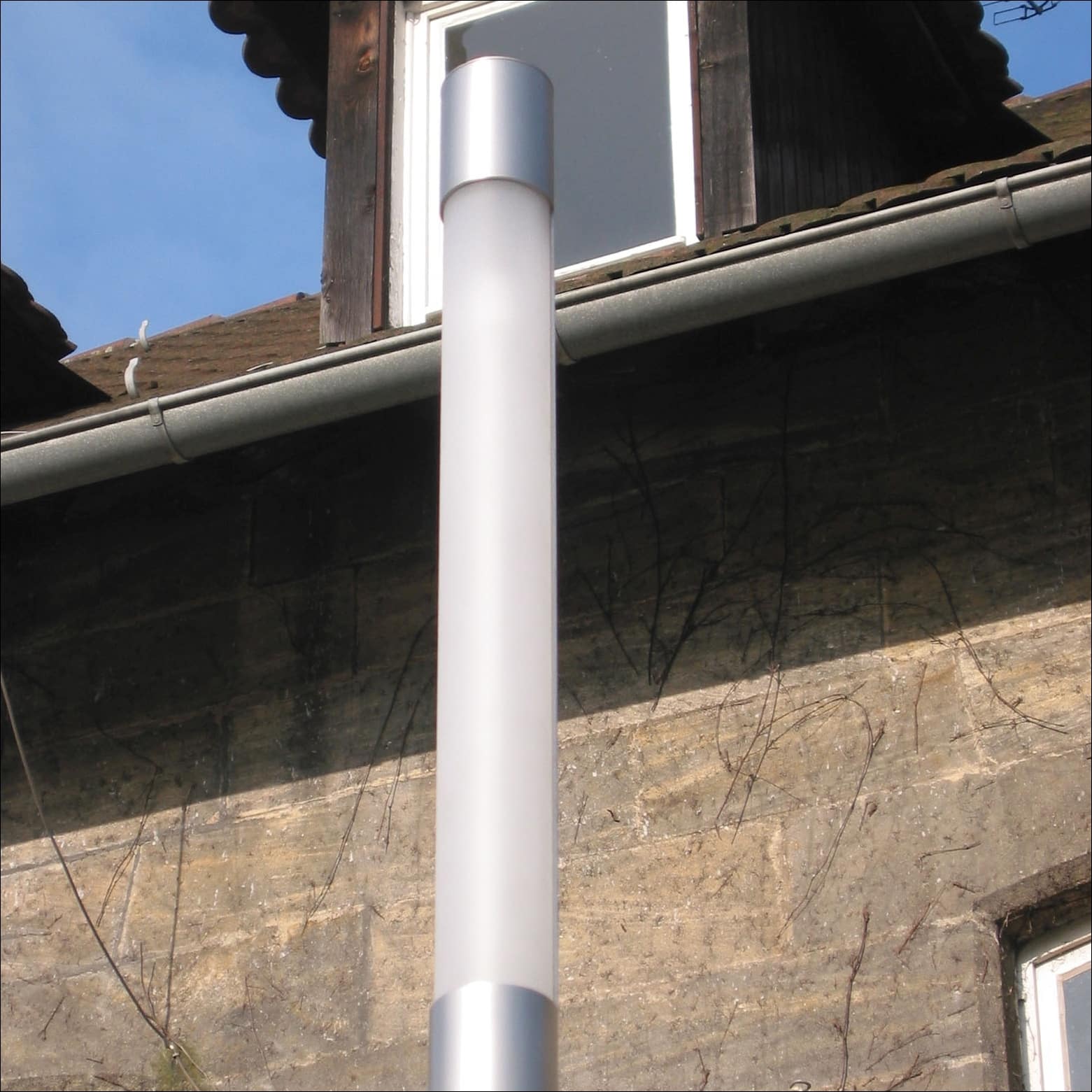

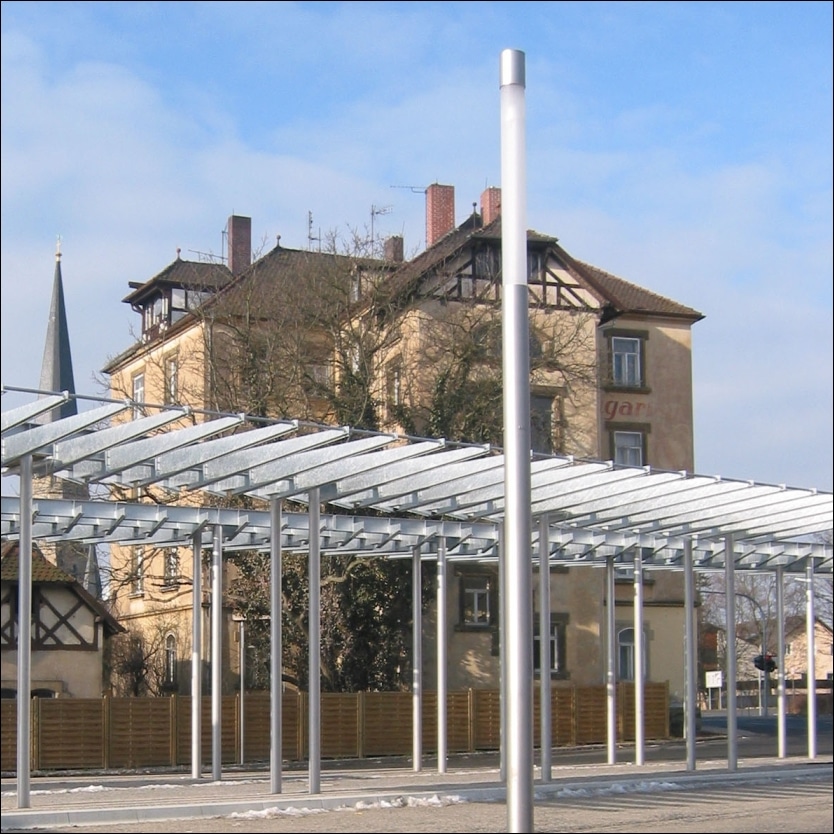

Light column
FIACCO type 560/140
Light column FIACCO type 560/140
Light column, stainless steel (V2A / V4A, glass bead blasted)
Design tube
- Ø68 mm stainless steel V2A /V4A
- Surface glass bead blasted

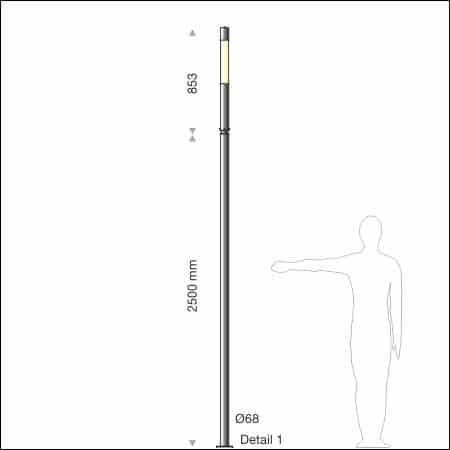

- Standard length A = 3353 mm
Protective tube
- Protection glass transparent or frosted
- Shockproof, dust-proof, jet-proof IP 65
- Protection class 1 or 2
Ground mounting
- 360° rotatable

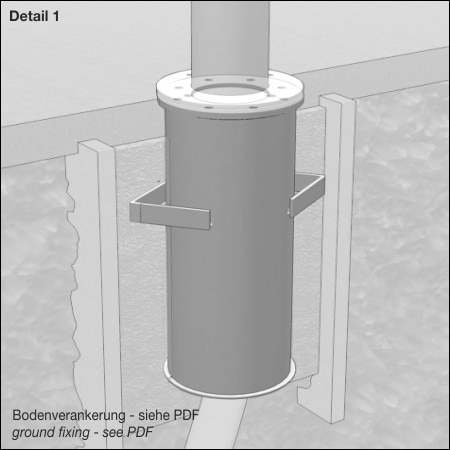

- Ground sleeve on request
Marks of conformity
Item-No.
Illuminant
501560140
TC-L 36 Watt
LED501560140000
LED Watt
500100589
Ground sleeve
Available with direct connection (230/220/120/110V) no driver needed.
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
Download
DataSheet Light column FIACCO Typ 560/140
DataSheet Groundsleeve D130
Brochure Light column FIACCO type 560/140
IES-Data
IES Light column FIACCO type 560/140
Assembly Instructions
Assembly Instructions Light column FIACCO Typ 560/140
