Light column
COLLONA type 500/510
Light column COLLONA type 500/510
Design tube

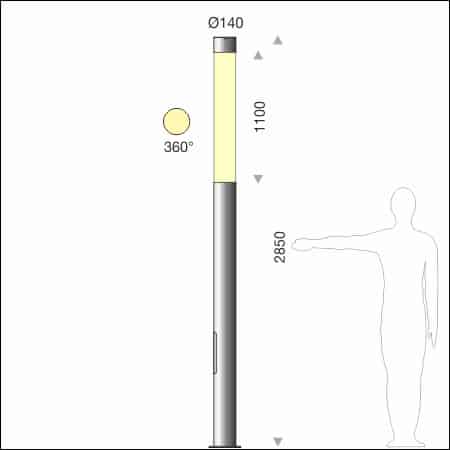

· Ø114,3 mm or Ø140 mm stainless steel V2A / V4A
· Surface glass bead blasted
· Standard length A = 2850 mm
· Light outlet angle B = 360°
Further length, light outlets and surfaces (colours) an request
Protective tube
· Protection glass transparent or frosted
· Shockproof, dust-proof, jet-proof
· IP 65
· Protection class 1 or 2
Ground mounting
· 360° rotatable
· Ground sleeve on request
Marks of conformity
Item-No.
Illuminant
504500510114154
Ø114 mm T5 54 Watt
LED504500510114
Ø114 mm LED 65 Watt
504500510140154
Ø140 mm T5 54 Watt
LED504500510140
Ø140 mm LED 65 Watt
Available with direct connection (230/220/120/110V) no driver needed.
Further models and illuminants on request.
Download
DataSheet Light column COLLONA type 500/510
Brochure Light column COLLONA
Assembly instructions
Assembly instruction Light column COLLONA type 500/510
