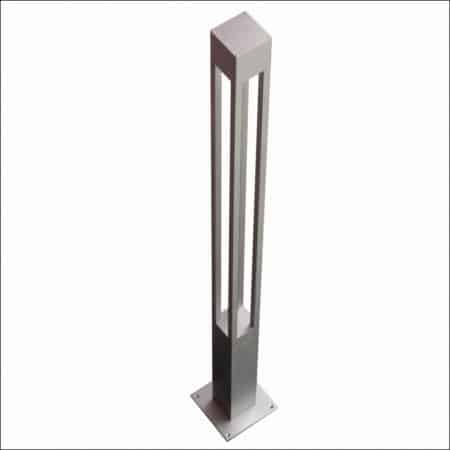

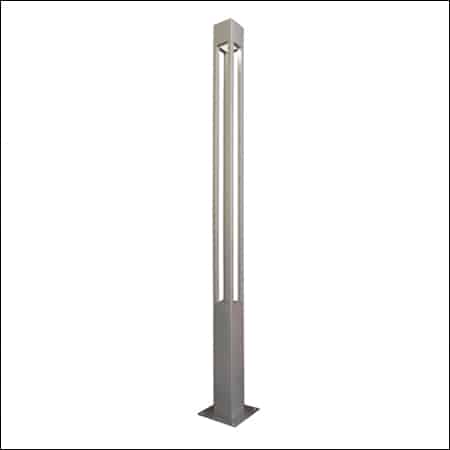

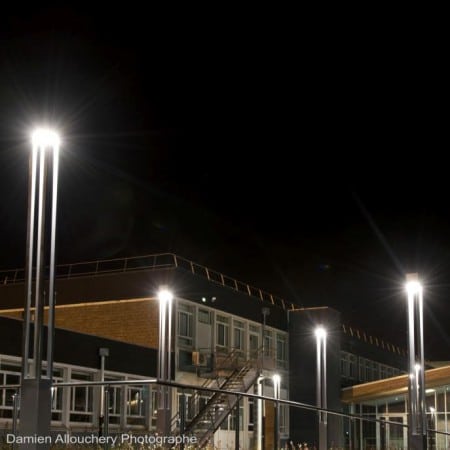

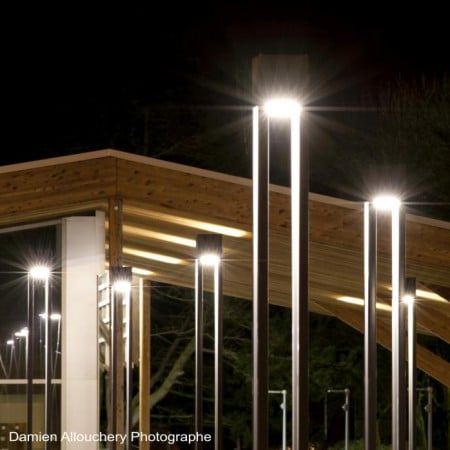

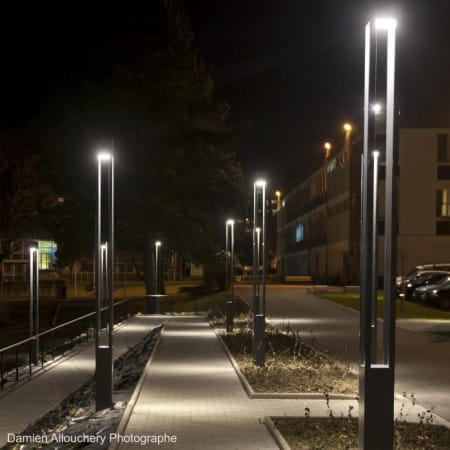

Light column COLLONA Q

Light column COLLONA Q

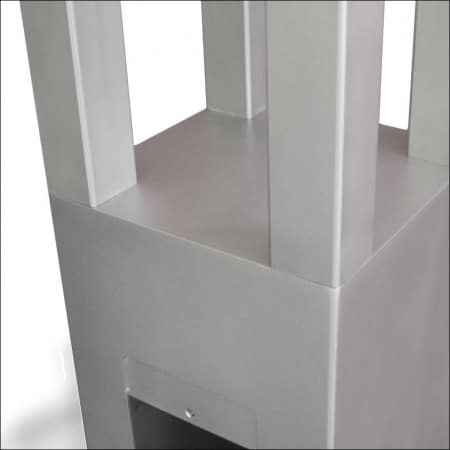

Standpipe and corner posts

  • material: stainless steel L304  1.4301  (optionally  L316  1.4401)

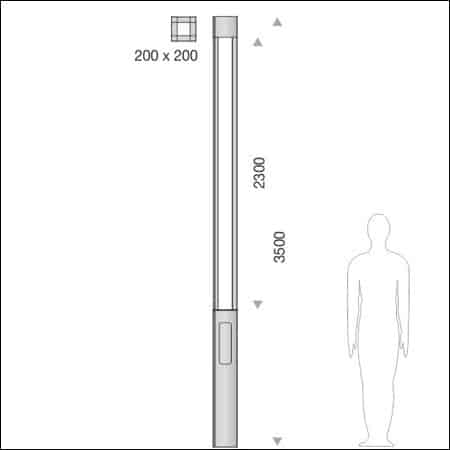

  • standpipe: 200 x 200 mm
  • corner posts:  4 x  40 x 40 mm
  • standard height: 3500 mm
  • surface glass bead blasted
  • alternatively powder coated in RAL- / DB-colours

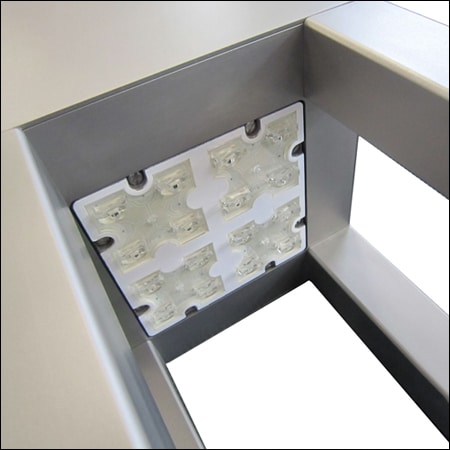

Lighting technology

  • beam angle:  symmetrical / asymmetrical
  • luminous intensity: 2300 lm /4400 lm /6200 lumens*
  • light temperature: 3000 K / 4000 K /5000K
  • shock-, dust-,  jet-proof
  • protection class IP67
  • electrical safety class 1 / 2

Ground mounting

  • tubular foundation

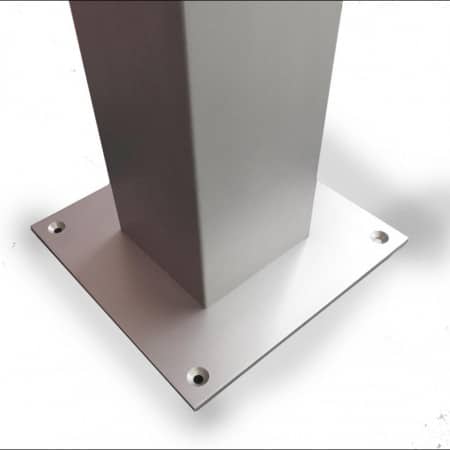

  • base plate

*Values in lm based on LED with 4000 K

Mark of conformity

Home > Certificates

Item-No. lumens* wattage* beam-angle total height**
LED505350510200/18 2300 lm 15 W sym./asym. 3500 mm
LED505350510200/34 4400 lm 33 W sym./asym. 3500 mm
LED505350510200/55 6200 lm 50 W sym./asym. 3500 mm

Possible colour temperatures: 3000 / 4000 / 5000 K

*Luminous flux related to version with 4000K

*We reserve the right of changing LED-specifications in case of technical improvement

**Further dimensions upon request
