Bollard light
FIACCOLA type 410 RA
Bollard light FIACCOLA type 410 RA
Bollard, stainless steel (V2A / V4A, glass bead blasted)

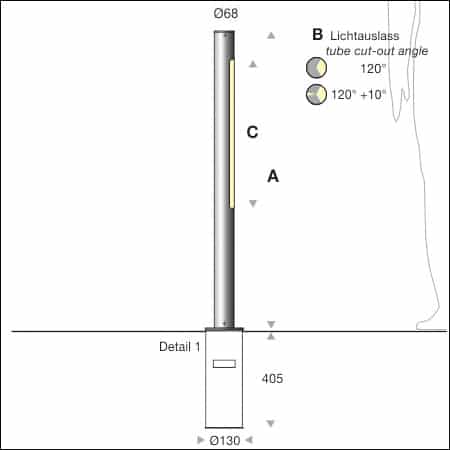

Design tube
- Ø68 mm (Ø76 mm) stainless steel V2A / V4A
- Surface glass bead blasted
- Standard lengths A = 1000, 1700, 2070 mm
- Light outlet angle B = 120°, 120° + 10°
Protective tube
- Polycarbonate transparent or frosted
- Shockproof, dust-proof, jet-proof IP 65
- Protection class 1 or 2
Ground mounting
- 360° rotatable
- Ground sleeve on request
Marks of conformity
Item-No.
A
B
C
Illuminant
LED500050410RA
1000
120°
560
LED 9 Watt
LED50005041010RA
1000
120°|10°
560
LED 9 Watt
LED500070410RA
1700
120°
1120
LED 18 Watt
LED50007041010RA
1700
120°|10°
1120
LED 18 Watt
LED500090410RA
2070
120°
1400
LED 22,5 Watt
LED50009041010RA
2070
120°|10°
1400
LED 22,5 Watt
500100198
Ground sleeve
*all dimensions in mm
Light colour: LED 3000/4000/5000 K, T5 830 ww / 840 nw

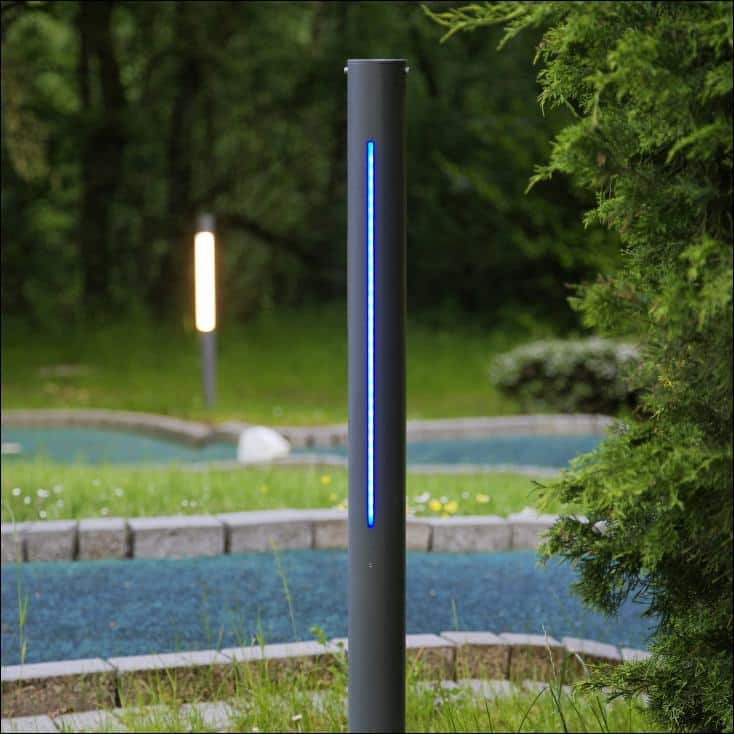

Optional light slit (10°) on back, available colours: white, blue, red, green or RGB
Available with 230V direct connection, no driver needed!
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
