Bollard light
COLLONA type 050/410

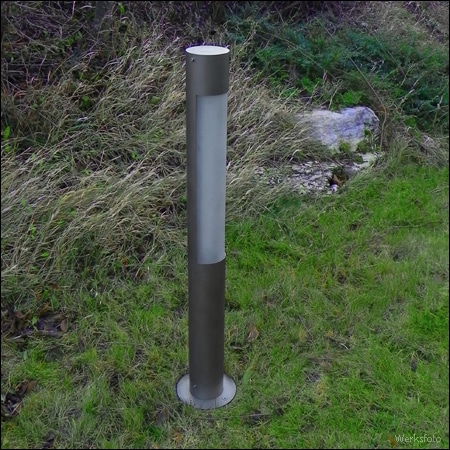

Bollard light COLLONA type 050/410
Bollard, stainless steel (V2A / V4A, glass bead blasted)

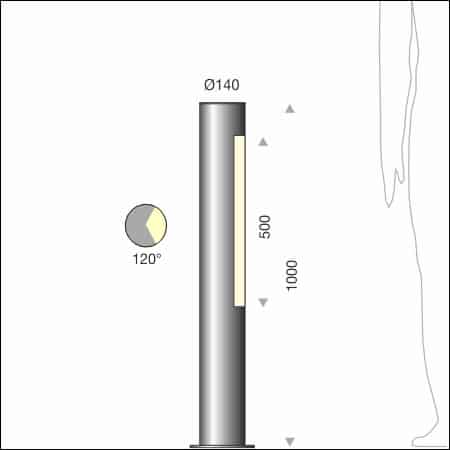

Design tube
- Ø114.3 mm oder Ø140 mm stainless steel L304 / L316
- Surface glass bead blasted, powder coated or painted according to specification
- Standard length A = 1000 mm

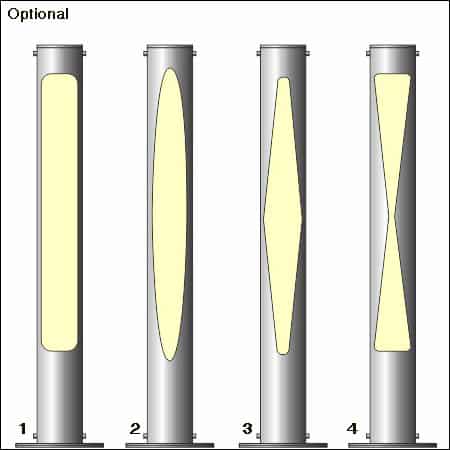

- Light outlet angle B = 120°
Protective tube
- Protection glass in acryl- / polycarbonate or borosilicate glass transparent or frosted
- Shockproof, dust-proof, jet-proof
- IP 54 / IP 65
- Protection class 1 or 2
Ground mounting
- 360° rotatable

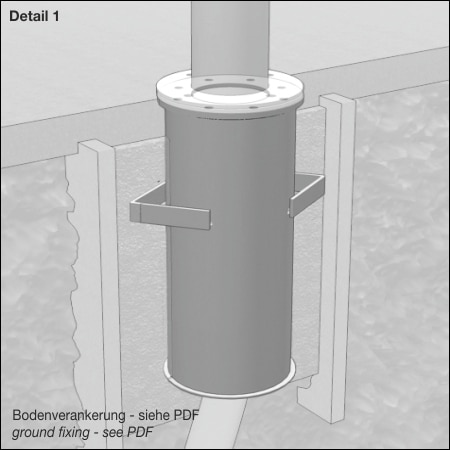

- Ground sleeve on request
Marks of conformity
Item-No.
A
B
C
Ø
Illuminant
504050410114124
1000
120°
500
114mm
T5 24 Watt
504050410140124
1000
120°
500
140mm
T5 24 Watt
LED504050410114
1000
120°
560
114mm
LED 9 Watt
LED504050410140
1000
120°
560
140mm
LED 9 Watt
Available with 230V direct connection, no driver needed!
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.
