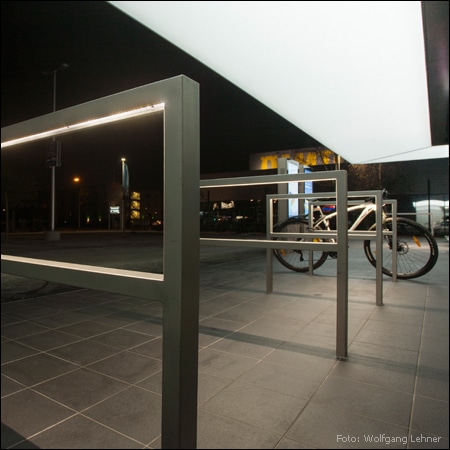

LED Bicycle rack QUADRATONE type B
LED Bicycle rack QUADRATONE type B
Bicycle parker made of stainless steel with integrated LED-strip
With intermediat brace

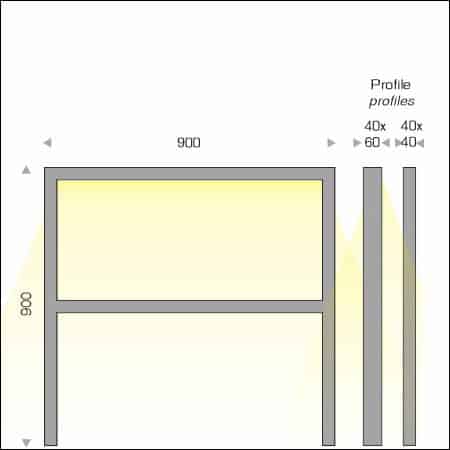

Standard format 900 x 900 mm (length x height)
Other dimensions on request
U-profile
- profiles U40 x 40 | U60 x 40
- stainless steel 304L (1.4301)
optional 316L (1.4401) - surface glass bead blasted
optional powder coated (RAL/DB)
Protective cover
- Polycarbonate transparent or frosted
Light strip
- LED-strip (single row), different lumens packages available
- Colour temperature 3000/4000K or RGB

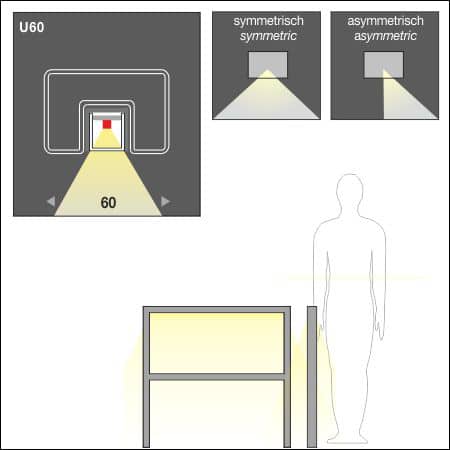

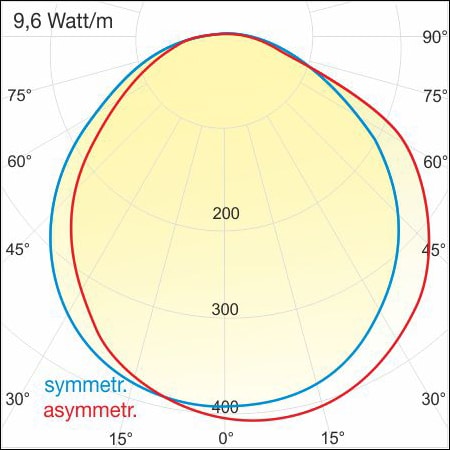

- Beam angle symmetric or asymmetric
Protection
- Protection class IP54
- Protection class LED IP65 | IP67
- Electrical safety class 1, 2 or 3
Marks of conformity
Item-No.
Profile
Variant ground fixing
 Lenght in mm
LED771040090BF
40 x 40
F
900
LED771040090BK
40 x 40
K
900
LED771060090BF
60 x 40
F
900
LED771060090BK
60 x 40
K
900
*We reserve the right of changing specifications in case of technical improvement.

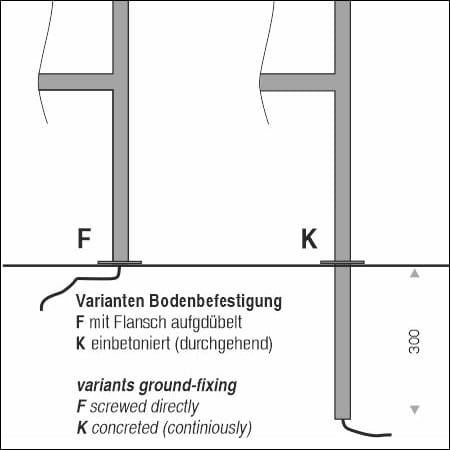

Variants ground-fixing
F – screwed directly
K – concreted (continiously)
Download
DataSheet Bicycle rack QUADRATONE LED type B
Assembly instruction
LDT/IES-Data
LDT Bicycle rack QUADRATONE LED type B symmetrical
LDT Bicycle rack QUADRATONE LED type B asymmetrical
